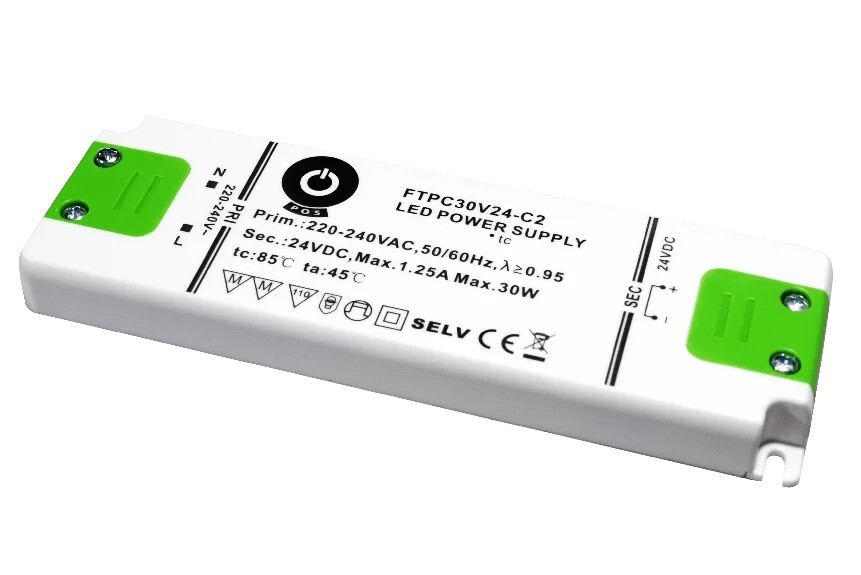

Transformer 24V constant voltage 30W
30W LED Constant voltage Switching Power Supply
Article No. |
132784 |
EAN |
5902135132784 |
Terms and Conditions
14-day money-back guarantee
Delivery: Pick up at our warehouse in Helsingborg or tracked shipping 1-3 business days.
Description
Power adapter used to convert 230V AC power from the wall socket to 24V DC power used by LED lighting and other electronic devices. It has a compact and slim design, which makes it ideal for installation in tight spaces.
Advantages:
- Compact and slim design: It takes up minimal space and is easy to install.
- High efficiency: It converts power efficiently and wastes minimal energy.
- Safety features: It has short circuit protection and overload protection to ensure safe use.
- Long life: It has a long life and does not need to be replaced frequently.
Areas of use:
- LED lighting: It is used to power LED strips, LED modules and other LED lights.
- Other 24V DC devices: It can be used to power devices that require 24V DC power, e.g. routers, modems and surveillance cameras.
Documents
Specification
| RATED OUTPUT VOLTAGE | 24V |
| RATED OUTPUT CURRENT | 1.25A |
| POWER RANGE | 0 ÷ 30W |
| LINE REGLATION | ± 1% |
| LOAD REGLATION | ± 1% |
| VOLTAGE TOLERANCE | ± 5% |
| RIPPLE & NOISE (MAX.) | 720mVP-P |
| SETUP TIME | 500ms / 230VAC at full load |
| INPUT VOLTAGE RANGE | 180 ÷ 264VAC |
| INPUT FREQUENCY RANGE | 50 / 60Hz |
| POWER FACTOR (MIN.) | PF >= 0.98 / 230VAC at full load |
| EFFICIENCY (MAX.) | 86% |
| AC CURRENT (TYP.) | < 0.17A / 230VAC |
| INRUSH CURRENT (TYP.) | 30A / 230VAC(25°C) |
| NO LOAD POWER CONSUMPTION (MAX.) | < 0.5W |
| OVER CURRENT | Range: 110 ÷ 140% Recovers automatically after fault condition is removed. |
| SHORT CIRCUIT | Type, hiccup mode. Recovers automatically after fault condition is removed. |
| OVER TEMPERATURE | Recovers automatically after fault condition is removed |
| WORKING TEMPERATURE | -20°C ÷ +45°C |
| WORKING HUMIDITY | 10 ÷ 90% RH |
| Storage Temperature and Humidity | -40°C ÷ 80°C, 10 ÷ 90% RH non-condensing |
| SAFETY STANDARDS | Compliance to EN61347-1, EN61347-2-13 |
| Withstand Voltage | IN/OUT: 5.3kVDC/1min |
| Isolation Resistance | IN/OUT: 50M?/500VDC/25°C/70% |
| EMC EMISSION | Compliance to EN55015 |
| EMC IMMUNITY | Compliance to EN61547; EN61000-4-2, -3, -4, -5, -6; |
| HARMONIC CURRENT | Compliance to EN61000-3-3; EN61000-3-2 class C ( >= 100% load) |
| DIMENSIONS | 154 x 50 x 14mm (L x W x H) |
| LIFETIME | 50 000 hours / 230VAC, full load, tc < 80°C |
| WEIGHT AND PACKING | 0.09kg; 100pcs./ctn; ctn dimensions: 31.5 x 25.5 x 16.5cm |
| EAN | 5902135132784 |
