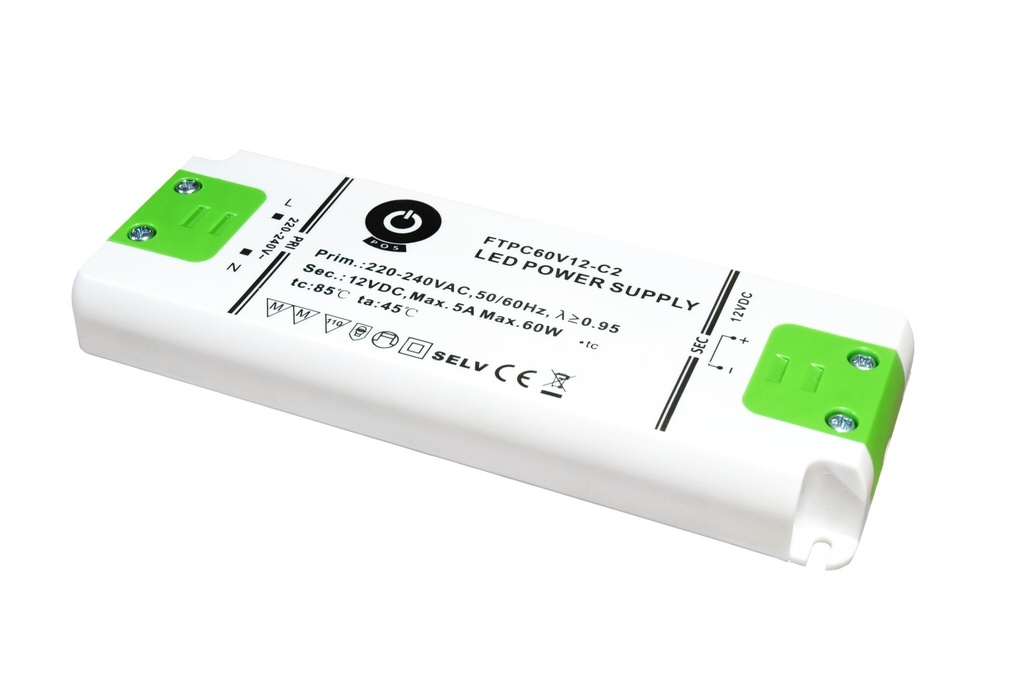

Transformer 12V constant voltage Slim 60W
60W LED Constant voltage Switching Power Supply
Article No. |
132845 |
EAN |
5902135132845 |
Terms and Conditions
14-day money-back guarantee
Delivery: Pick up at our warehouse in Helsingborg or tracked shipping 1-3 business days.
Description
Power adapter used to convert 230V AC power from the wall socket to 12V DC power used by LED lighting and other electronic devices. It has a compact and slim design, which makes it ideal for installation in tight spaces.
Advantages:
- Compact and slim design: It takes up minimal space and is easy to install.
- High efficiency: It converts power efficiently and wastes minimal energy.
- Safety features: It has short circuit protection and overload protection to ensure safe use.
- Long life: It has a long life and does not need to be replaced frequently.
Areas of use:
- LED lighting: It is used to power LED strips, LED modules and other LED lights.
- Other 12V DC devices: It can be used to power devices that require 12V DC power, e.g. routers, modems and surveillance cameras.
Documents
Specification
| Rated Voltage | 12V |
| Rated Current | 5A |
| Rated Power | 60W |
| Power Range | 0 ÷ 60W |
| Line Reglation | ± 1% |
| Load Reglation | ± 2% |
| Voltage Tolerance | ± 5% |
| Ripple & Noise (max.) | 360mVP-P |
| Setup, Rise, Holdup time | 500ms, 30ms, 15ms |
| Voltage Range | 220 ÷ 240VAC |
| Frequency Range | 50/60Hz |
| Power Factor (typ.) | PF > 0.98/ 230VAC at full load |
| Efficiency (typ.) | 87% |
| AC current (typ.) | 0.35A / 230VAC |
| Inrush current (max.) | 30A / 230VAC(25°C) |
| No Load Power Consumption (max.) | 0.5W |
| Over Current | Range: 110 ÷ 140% Recovers automatically after fault condition is removed. |
| Short Circuit | Type hiccup mode. Recovers automatically after fault condition is removed. |
| Over voltage | Recovers automatically after fault condition is removed. |
| Over temperature | Recovers automatically after fault condition is removed. |
| Working Temperature | -20°C ÷ 45°C |
| Working Humidity | 10 ÷ 90% RH non-condensing |
| Storage Temperature and Humidity | -40°C ÷ 80°C, 10 ÷ 90% RH non-condensing |
| Safety Standards | Compliance to EN61347-1, EN61347-2-13 |
| Withstand Voltage | IN/OUT: 5.3kVDC/1min |
| Isolation Resistance | IN/OUT: 50M?/500VDC/25°C/70% |
| EMC Emission | Compliance to EN55015 |
| EMC Immunity | Compliance to EN61547; EN61000-4-2, -3, -4, -5, -6; |
| Harmonic Current | Compliance to EN61000-3-3; EN61000-3-2 class C ( >= 100% load) |
| Dimensions | 159.9 x 57.8 x 18mm (L x W x H) |
| Weight and Packing | 0.1kg; 100pcs./ctn; ctn dimensions: 31.5 x 25.5 x 16.5cm |
| EAN | 5902135132845 |
