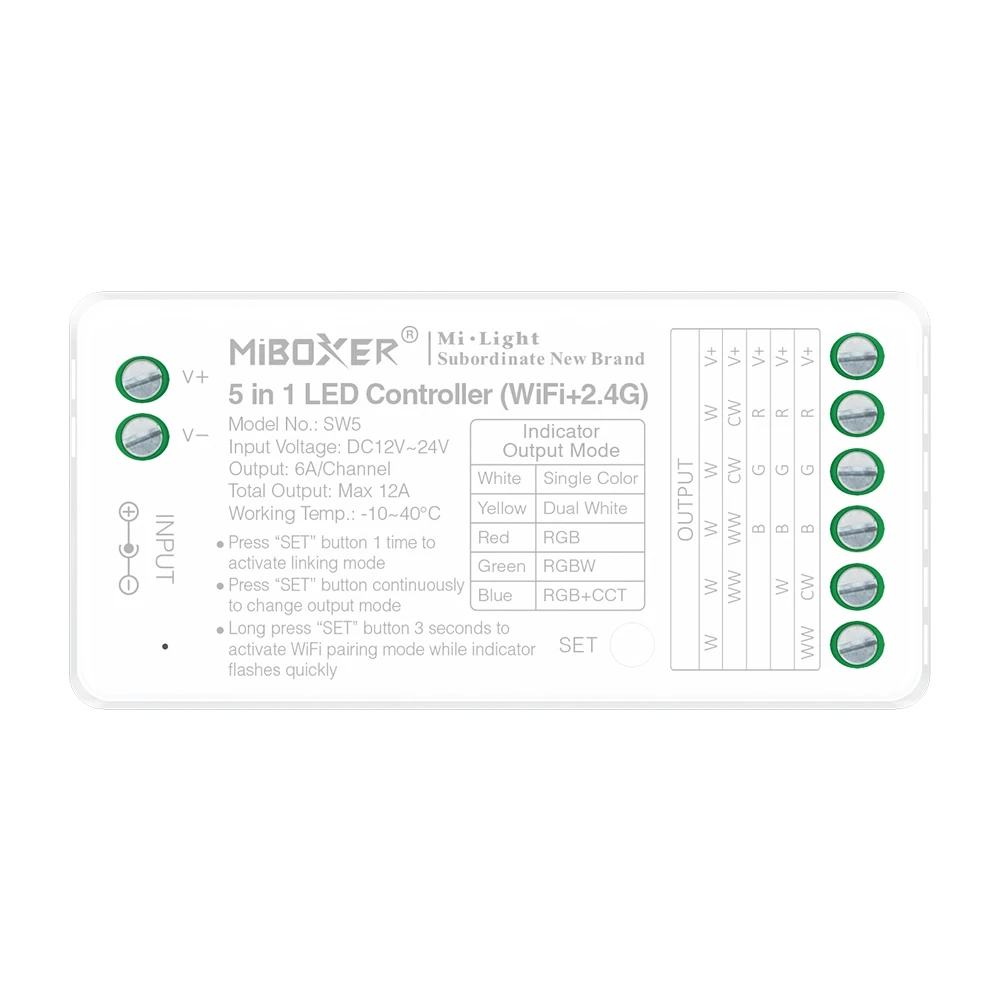

Mi-Light SW 5-in-1 LED Controller (WiFi+2.4G)
Article No. |
185464 |
EAN |
6970602185464 |
Terms and Conditions
14-day money-back guarantee
Delivery: Pick up at our warehouse in Helsingborg or tracked shipping 1-3 business days.
Description
Mi-Light SW5 5-in-1 LED Controller (WiFi+2.4G)
is a versatile 5-in-1 LED controller designed to manage various types of LED strips: single color (DIM), CCT (Dual White), RGB, RGBW, and RGB+CCT. It integrates both WiFi and 2.4G RF communication, providing flexible control options via remote control, smartphone app (MiBoxer/Tuya Smart), and third-party voice control (e.g., Amazon Alexa, Google Assistant).
Key Features
- Multi-functional (5-in-1): Supports single color, CCT (Dual White), RGB, RGBW, and RGB+CCT LED strips.
- Dual Communication: WiFi and 2.4G RF for versatile control.
- Input Voltage: DC12-24V.
- Output Current: 6A per channel, total max 12A.
- Control Options:
- 2.4G RF remote controls (purchased separately).
- Smartphone app (MiBoxer App or Tuya Smart App) via WiFi; no separate gateway required for the WiFi model.
- Voice control via third-party integrations (e.g., Amazon Alexa, Google Assistant).
- Color Control: 16 million colors (for RGB/RGBW/RGB+CCT), adjustable color temperature (2700K~6500K for CCT/RGB+CCT), adjustable brightness and saturation.
- Dynamic Modes: Built-in dynamic modes with adjustable speed and brightness.
- Auto-transmitting & Synchronization: Signals from the remote control can be forwarded between controllers within 30m, extending the range indefinitely. Multiple controllers can synchronize in the same dynamic mode.
- Memory Function: Restores the last used light setting after a power outage.
- "Do Not Disturb" (DND) Mode: Prevents the light from automatically turning on after a power failure.
- PWM Frequency: Switchable between high and low frequency.
- IP Rate: IP20 (non-waterproof).
- Dimensions: Approximately 74.5 x 36 x 17 mm.
Areas of Application
The Mi-Light SW5 is ideal for a wide range of LED lighting applications where flexible and smart control of different types of LED strips is required, both via traditional remote control and via smart home systems.
Documents
Specification
| Product Name | SW5 5-in-1 Controller |
| Model No. | SW5 |
| Input Voltage | DC12-24V |
| Output Current | 6A / Single channel |
| Total Output | Max 12A |
| Control Signal | 2.4GHz RF |
| Control Distance | 30M |
| IP Rate | IP20 |
| Dimming Curve | Logarithmic |
| Radio Equipment (RED) | ETSI EN 300 440 V2.2.1 |
| Certification | CE, EMC, RED |
| EAN | 6970602185464 |
