Mi-Light B6 SPI Panel Remote (2.4GHz)
Article No. |
185921 |
EAN |
6970602185921 |
Terms and Conditions
14-day money-back guarantee
Delivery: Pick up at our warehouse in Helsingborg or tracked shipping 1-3 business days.
Description

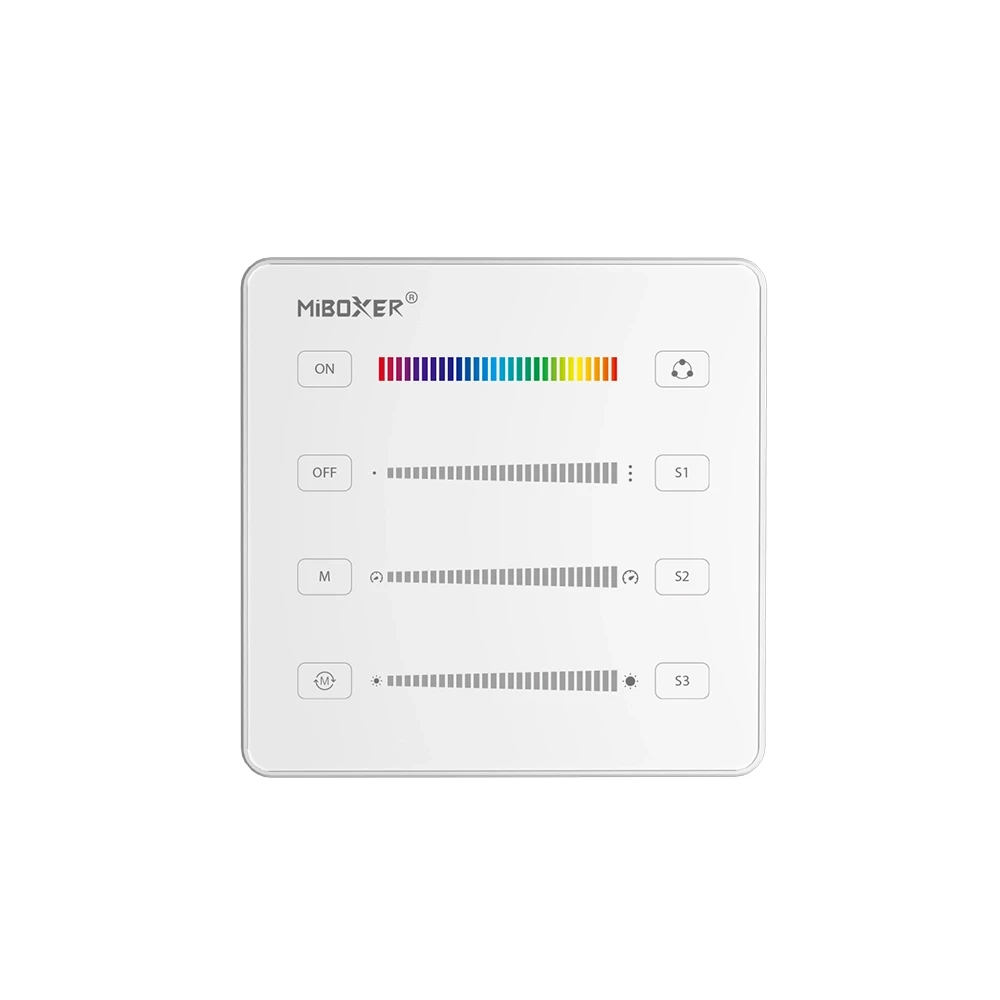

B6 SPI Panel Remote (2.4GHz)
is a wireless wall-mounted control panel designed to control SPI (Serial Peripheral Interface) LED strips, also known as "pixel LED strips" or "dream color LED strips". These LED strips are addressable, meaning that each individual LED (or group of LEDs) can be controlled individually to create advanced lighting effects and animations. The panel uses 2.4GHz wireless transmission technology for a stable signal and good anti-interference capability.
Key Features
- SPI Compatibility: Specifically designed to control SPI LED strips (e.g., WS2811, WS2812, WS2815, SK6812).
- 3-in-1 Control: Can control single-color, RGB, and RGBW SPI LED strips.
- 2.4GHz Wireless Technology: Ensures fast transmission and stable signal with a range of up to 30 meters.
- Color and Length Adjustment: Ability to adjust the color sequence and the length (number of pixels/points) of the SPI strip.
- Dynamic Modes: Select from and adjust the speed of various dynamic lighting modes. Some models may have up to 20 dynamic modes with the option to edit their colors.
- Scene Storage: Ability to save scenes for quick access.
- Touch Control (depending on variant): May feature a capacitive touch-IC for precise control.
- Magnetic Installation: Some variants may have magnetic adsorption for easy wall mounting and detachability.
- Power Saving Mode: Includes a "Do Not Disturb" mode function that can be useful during frequent power outages.
- Low Power Consumption: Features low standby power consumption.
Areas of Application
The B6 SPI Panel Remote is ideal for home automation and smart lighting, especially where you want advanced control over addressable LED strips. It can be used in living rooms, bedrooms, media rooms, or other spaces where dynamic and customizable lighting is desired. It is often integrated into the MiBoxer/Mi-Light ecosystem for lighting control.
Important Note
For the remote control to function, a compatible SPI LED controller (e.g., MiBoxer SPIR3 or similar) is required. This controller receives the signal from the B6 panel and in turn controls the LED strip.
Documents
Specification
| Model Number | B6 (or B6-W for white variant) |
| Working Voltage | 3V (typically powered by 2 x AAA batteries, not included) |
| Standby Power Consumption | Approximately 15µA (microamperes) |
| Transmitting Frequency | 2400-2483.5MHz (2.4GHz) |
| Modulation Method | GFSK |
| Transmitting Power | 6dBm |
| Control Distance | Up to 30 meters |
| Working Temperature | -10°C to 40°C |
| Output Signal | SPI (TTL) 800Kbps |
| Pixel Points (max) | |
| Single Color | 2048 pixels |
| RGB | 1536 pixels |
| RGBW | 1024 pixels |
