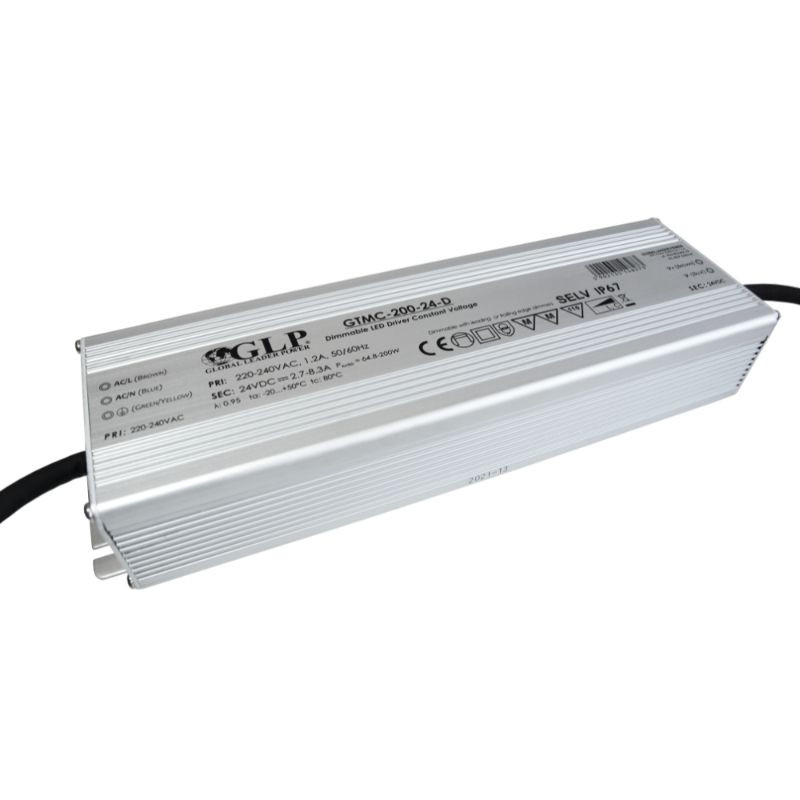

24V 200W LED Triac Dimmable Constant Voltage Power Supply IP67
Article No. |
148273 |
EAN |
5902135148273 |
Terms and Conditions
14-day money-back guarantee
Delivery: Pick up at our warehouse in Helsingborg or tracked shipping 1-3 business days.
Description
? Features:
• Constant voltage PWM style output
Constant voltage design
• European AC input range
• Protections: Overload / Over voltage / Short circuit
• Cooling by free air convection
• Isolation class I
• Fully encapsulated with IP67 level
• Suitable to work with AC triac dimmers
Documents
Specification
| Rated Voltage | 24V ± 5% |
| Rated Current | 8.3A |
| Current Range | 2.7 ÷ 8.3A |
| Rated Power | 200W |
| Frequency Range | 90 ÷ 120KHz / full load |
| PWM Frequency | 300kHz |
| Line Regulation | ± 2% |
| Load Regulation | ± 2% |
| Tolerance | [3] ± 2% |
| Ripple & Noise (max.) | [2] 300mVP-P |
| Setup | [4] <= 500ms |
| Voltage Range | 220 ÷ 240VAC |
| Frequency Range | 50 ÷ 60Hz |
| AC Current | 1.3A / full load |
| Rated Power | 230W |
| Power Factor | >= 0.95 / full load |
| THD | <= 15% / full load |
| Efficiency | >= 92% / full load |
| Inrush Current (max.) | 65A / 500us (Cold start) |
| Dimming Range | 1 – 100% of rated output current |
| Suitable dimmers | Triac dimmers (leading or trailing edge) compatible with capacitive or inductive load |
| Overload protection range | > 150% |
| Type | hiccup, auto-recovery. |
| Short Circuit protection type | hiccup, auto-recovery. |
| Over Voltage prtotection type | hiccup, auto-recovery. |
| Working Temperature Ta | -20°C ÷ 50°C; tc: 80°C |
| Working Humidity | 5 ÷ 85% RH non-condensing |
| Storage Temperature and Humidity | -20°C ÷ 70°C, 5 ÷ 85% RH non-condensing |
| Safety Standards Compliance to | EN 61347-1, EN 61347-2-13, EN 60598-1 |
| Withstand Voltage | IN/OUT: 3.75kVAC |
| Isolation Resistance IN/OUT | 100M?/500VDC/25°C/70% |
| EMC Emission Compliance to | EN 55015, EN 62493 |
| EMC Immunity Compliance to | EN 61547 |
| Harmonic Current Compliance to | EN 61000-3-3; EN 61000-3-2 |
| Lifetime (typ.) | 30 000 hours |
| Dimensions | 249 x 72 x 40mm (L x W x H) |
| Primary cable | H05RN-F VDE3x1.0mm2 (300mm) |
| Secondary cable | H05RN-F VDE2x1.0mm2 (300mm) |
