Mi-Light D4-CX DMX512 4-Channel Constant Voltage DMX512 & RDM Decoder (DMX 512)
Precise control over LED lighting systems
Article No. |
181107 |
EAN |
6970602181107 |
Terms and Conditions
14-day money-back guarantee
Delivery: Pick up at our warehouse in Helsingborg or tracked shipping 1-3 business days.
Description

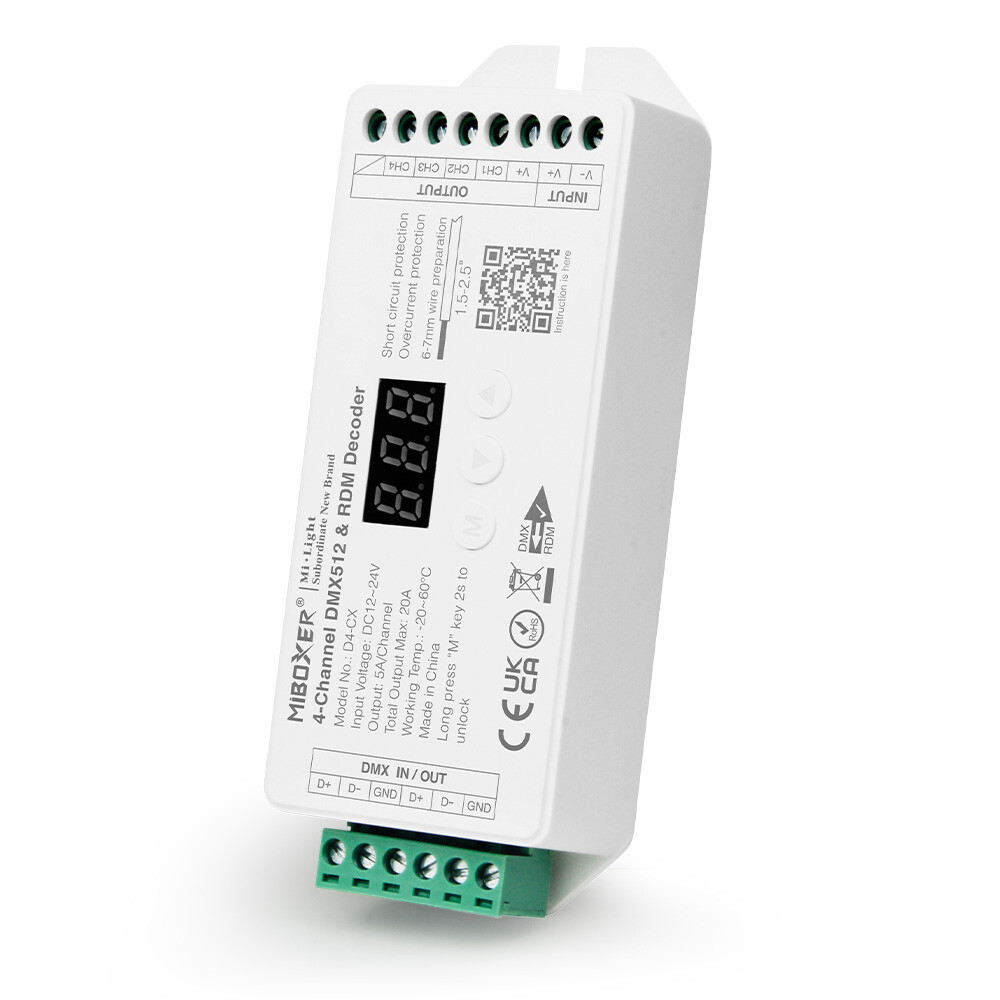

The MiBoxer D4-CX is a versatile decoder designed to convert DMX512 signals into controllable output for four separate LED channels. Offering advanced features like RDM for enhanced control and configuration, this decoder is ideal for complex lighting setups requiring precise control over multiple zones.
- Commercial lighting: Control multiple LED fixtures in various settings.
- Architectural lighting: Create dynamic lighting effects with multiple zones.
- Stage lighting: Used as a building block for larger lighting systems.
- DIY projects: Build custom lighting solutions with multiple zones.
Documents
Specification
| Application | RGB+W |
| Input/output voltage of the receiver | 12V DC or 24V DC |
| Maximum output current | 20A |
| Number of outputs of the receiver | 4 outputs (R/G/B/W) - common anode |
| Controlling method | wired (DMX512) |
| Model number | D4-CX |
| Working temperature | -20 – 60°C |
| Input connector (power supply) | Screw terminals for bare wires |
| Output connector (terminal) | Screw terminals for bare wires |
| Color | White |
| IP class | IP20 |
| Dimensions[mm] | L130 x W49 x H27 |
| Certification | RoHS, CE, UKCA |
| Warranty | 2 years |
| EAN | 6970602181107 |
