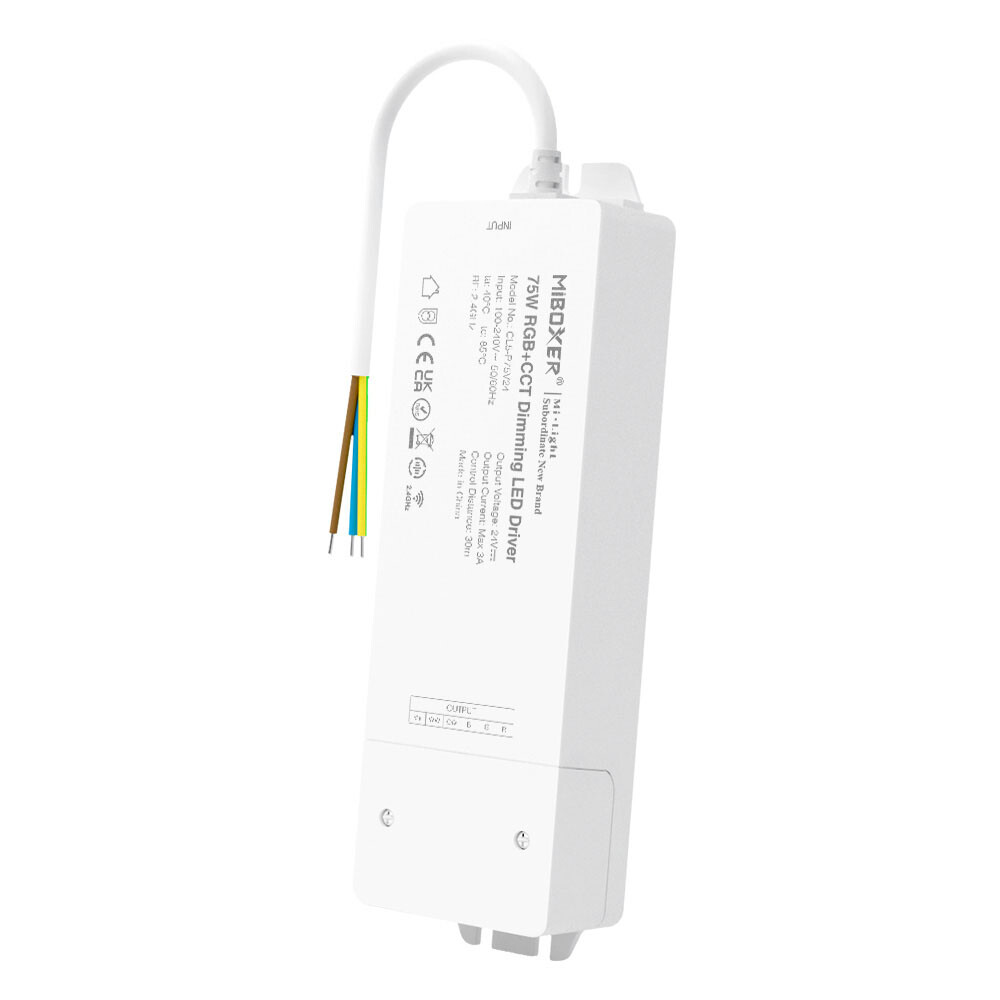

Mi-light CL3-P75V24 75W RGB+CCT Dimming LED Driver (2.4G)
Article No. |
182197 |
EAN |
6970602182197 |
Terms and Conditions
14-day money-back guarantee
Delivery: Pick up at our warehouse in Helsingborg or tracked shipping 1-3 business days.
Description
Miboxer CL5-P75V24
High-quality and versatile dimmer driver that can be used to control RGB+CCT LED lamps with an output of up to 75 watts. It generates 24 volts of voltage and has a variety of functions, including:
- Brightness adjustment: You can use the driver to adjust the brightness of your LED lights in 1% increments
- RGB+CCT: Color control
- Scheduling: You can schedule your LED lights to turn on and off automatically at set times. (requires gateway)
- Group control: You can group your LED lights and control them together.
The driver is compatible with all 24V LED lights and can be controlled with all Mi-light remote controls that use the 2.4 GHz protocol. It can also be controlled with a variety of devices, including smartphones, tablets and smart voice assistants, but this requires a WiFi gateway.
Advantages of Mi-light CL5-P75V24 75W RGB+CCT LED dimmer driver:
- High-quality and durable construction
- Versatile functionality
- Compatible with all Mi-Light controllers that use the 2.4 GHz protocol
- Can be used with a variety of devices
This drive can be used in a variety of environments, including home, office, retail and industry. It can be used to control RGB+CCT LED lights in ceilings, walls and floors.
Mi-light CL5-P75V24 75W RGB+CCT LED Controller/Transformer is a good choice for people looking for a high quality and versatile dimmer driver to control RGB+CCT LED lights. It has a variety of features and is compatible with a variety of devices.
Documents
Specification
| Product Name | 75W RGB+CCT Dimming LED Driver (2.4G) |
| Model No. | CL5-P75V24 |
| Input Voltage | 100-240V~ 50/60Hz |
| Output Current | Max 3A |
| RF | 2.4GHz |
| Temperature | ta:40°C, tc:85°C |
| Installation type | RGB+CCT |
| Lighting control system | PWM |
| Lighting control method | radio and additionally wired (2.4GHz / normally open button) |
| Number of supported zones/channels | 5 zone |
| Type of controller output(s). | CV (constant voltage) |
| Rated voltage | input - 100-240V AC (50/60Hz) / output - 24V DC |
| Maximum output current | max. 3.12A (output power - 75W) |
| Number of controller outputs | 5 outputs |
| Communication range | Up to 30 meters in open areas with the possibility of extension through signal retransmissions |
| Receiver behavior after the 230V power failure returns | switching on the lighting |
| Return to previous settings when turning off the transmitter | Yes |
| Working temperature | from -30 to + 50°C |
| IP class | IP20 |
| Installation | surface |
| Dimensions | 190 x 53 x 32mm |
| Certification | CE, RoHs |
| Manufacturer's warranty | 24 months |
| EAN | 6970602182197 |
