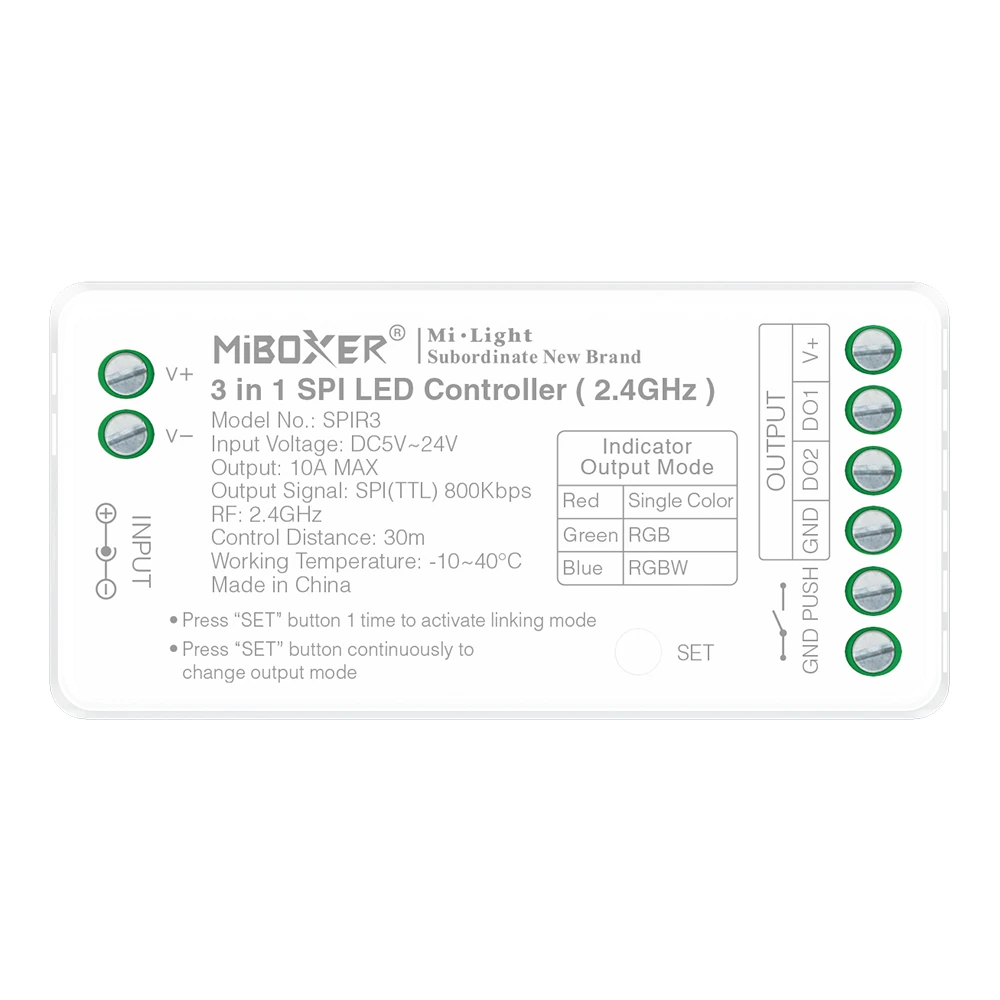

Mi-Light SPIR3 3 in 1 SPI LED Controller (2.4GHz)
Article No. |
185822 |
EAN |
6970602185822 |
Terms and Conditions
14-day money-back guarantee
Delivery: Pick up at our warehouse in Helsingborg or tracked shipping 1-3 business days.
Description
SPIR3 3-in-1 SPI LED Controller (2.4GHz)
The SPIR3 is an advanced and versatile 3-in-1 SPI LED Controller, specifically designed to control addressable LED strips (also known as digital or magic LED strips) via reliable 2.4GHz RF communication. It's part of the Mi-Light/MiBoxer ecosystem and offers comprehensive control over color, effects, and animations for RGB, RGBW, and RGB+CCT types of addressable LED strips.
Key Features:
- Versatile 3-in-1 Compatibility: The SPIR3 can control the following types of addressable LED strips with SPI signal:
- RGB: Addressable LED strips with Red, Green, and Blue colors.
- RGBW: Addressable LED strips with RGB and a dedicated White channel.
- RGB+CCT: Addressable LED strips with full color and adjustable Color Temperature (warm white to cool white).
- Supports Numerous IC Types: Compatible with a range of popular SPI (Serial Peripheral Interface) IC types such as WS2811, WS2812B, SK6812, TM1804, and others (check product specification for full list).
- 2.4GHz RF Wireless Control: Uses Mi-Light/MiBoxer's robust 2.4GHz RF protocol for stable and responsive control. Can be controlled with compatible remote controls, panels, and WiFi gateways (e.g., WL-Box1) for smartphone app control.
- Automatic Signal Transmitting: Within the 2.4G RF network, the SPIR3 can forward control signals to other compatible devices within 30 meters, effectively extending the control range and creating a mesh-like network.
- Automatic Mode Synchronization: Multiple SPIR3 controllers can synchronize their dynamic lighting modes when controlled by the same 2.4G RF remote and within range of each other.
- Memory Function: The controller remembers the last set lighting effect, color, or animation even after power interruption.
- Rich Selection of Dynamic Modes: Offers a variety of pre-programmed dynamic effects and animations to create impressive light shows.
- Adjustable Pixel Quantity: Ability to set the number of pixels/ICs to be controlled to match different lengths of LED strips.
- Compact Design: Small and sleek form factor that makes it easy to install and conceal in various applications.
Usage and Compatibility:
The SPIR3 is ideal for applications requiring individual pixel control and dynamic lighting effects, such as entertainment lighting, accent lighting behind TV screens, gaming rooms, creative installations, or advanced retail lighting. The controller connects between your power supply and the addressable LED strip. Simple pairing with a compatible 2.4GHz Mi-Light/MiBoxer remote is required for functionality.
Documents
Specification
| Product Name | 3 in 1 SPI LED Controller (2.4GHz) |
| Model No. | SPIR3 |
| Input Voltage | DC5V~24V |
| Output Current | Max 10A |
| Output Power | 50-240W |
| Output Type | Constant Voltage Output |
| Output Signal | SPI(TTL) 800Kbs |
| Pixel Dots | Single color (2048), RGB (1536), RGBW (1024) |
| Control Signal | 2.4GHz RF |
| Control Distance | 30m |
| IP Rate | IP20 |
| Working Temperature | -10~40°C |
| Dimming Grayscale | 4096 Levels |
| Dimming Range | 0.1%-100% |
| Dimming Curve | Logarithmic |
| Certification | CE, EMC, LVD, RED |
| Warranty | 5 Years |
| EAN | 6970602185822 |
