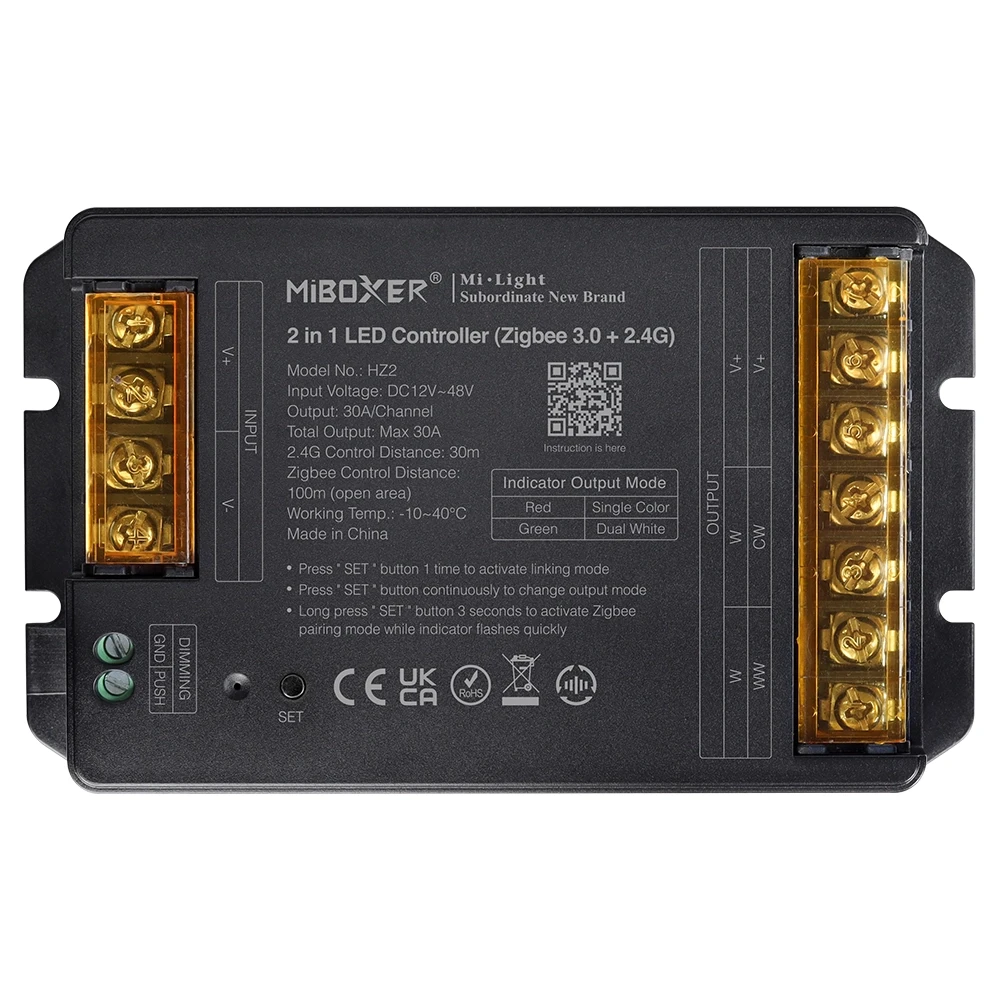

Mi-Light HZ2 2 in 1 LED Controller 30A (Zigbee 3.0+2.4G)
The HZ2 is a compact 2-in-1 LED controller for single-color and CCT lighting, offering dual Zigbee 3.0 and 2.4G wireless control options.
Article No. |
185976 |
EAN |
6970602185976 |
Terms and Conditions
14-day money-back guarantee
Delivery: Pick up at our warehouse in Helsingborg or tracked shipping 1-3 business days.
Description
HZ2 - 2-in-1 LED Controller (Zigbee 3.0 + 2.4G)
The HZ2 is a versatile and compact 2-in-1 LED controller offering flexible control of LED lighting with both Zigbee 3.0 and 2.4GHz RF protocols. It's designed for easy integration into smart home systems and is compatible with a range of Mi-Light/MiBoxer products and Zigbee gateways.
Key Features:
- Dual Control Protocols: The HZ2 supports both Zigbee 3.0 and 2.4GHz RF, providing great flexibility in how you control your lighting.
- Zigbee 3.0 Compatibility: Can connect to standard Zigbee 3.0 gateways like Philips Hue, IKEA TRÅDFRI, Amazon Echo (with built-in Zigbee hub), and the Tuya Smart app. This allows for integration into existing smart home ecosystems for app and voice control.
- 2.4GHz RF Compatibility: Can be controlled directly with Mi-Light/MiBoxer 2.4GHz RF remote controls and wall panels.
- Versatile Lighting Control: The HZ2 is a 2-in-1 controller, meaning it can be used to control either:
- Single Color LED strips.
- Color Temperature (CCT) LED strips (adjustable white light from warm white to cool white).
- Easy Integration and Use:
- App and Voice Control: When paired with a Zigbee gateway, you can control your lighting via smartphone apps (e.g., Tuya Smart) and voice assistants (e.g., Amazon Alexa, Google Assistant).
- Easy Linking: Simple to link with both Zigbee gateways and 2.4GHz RF remote controls.
- Memory Function: The controller remembers the last brightness, color, or color temperature setting when powered off and on again.
- Small and Discrete: Its compact design makes it easy to hide and install in tight spaces.
Installation:
The HZ2 is easy to connect between your LED power supply (transformer) and your LED strip. Always ensure you respect the maximum current and power ratings of the controller to avoid overload.
Documents
Specification
| Model No. | HZ2 |
| Input Voltage | DC12-48V |
| Output Current | 30A |
| Control Signal | Zigbee 3.0 + 2.4GHz RF |
| Control Distance | |
| Zigbee | 100M (open area) |
| 2.4G RF | 30M |
| IP Rate | IP20 |
| Working Temperature | -10~40°C |
| Certification | CE, EMC, RED |
| EAN | 6970602185976 |
