Power supply LED Constant voltage 24V/5A 120W with male connector
Article No. |
200484 |
EAN |
5901885200484 |
Terms and Conditions
14-day money-back guarantee
Delivery: Pick up at our warehouse in Helsingborg or tracked shipping 1-3 business days.
Description

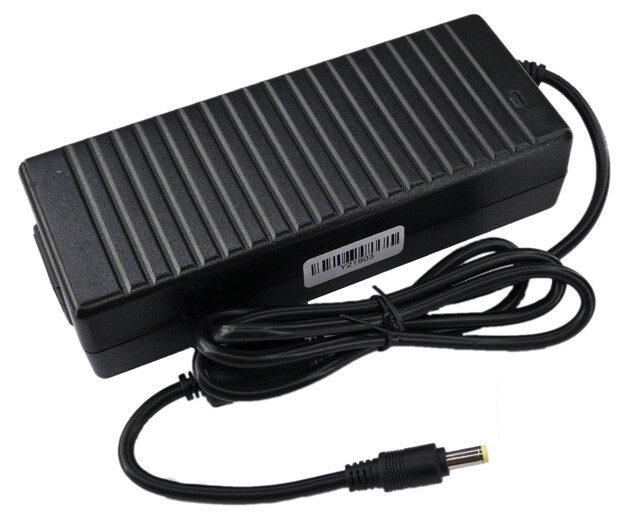

An LED power supply with a constant voltage of 24V and 120W can deliver a current of 5000mA. The power supply has a male connection and measures 87x50x34 mm.
The transformer can be used with our led strips or Aigostar's LED bar
Documents
Specification
| Rated Voltage | 24V |
| Rated Current | 5A |
| Rated Power | 120W |
| Line Regulation | ± 2% |
| Load Regulation | ± 5% |
| Tolerance | ± 5% |
| Ripple & Noise (max.) | 480mVP-P |
| Setup, Rise Time | 4 s, 20 ms / 230VAC at full load |
| Hold up Time | 50 ms / 230VAC at full load |
| Voltage Range | 90 ÷ 264VAC |
| Frequency Range | 47 ÷ 63Hz |
| Efficiency | (typ.) 85% |
| AC Current (typ.) | 2.14 A / 115VAC, 1.0 A / 230VAC |
| Overload protection | Range: 110 ÷ 150% rated current Type; hiccup mode, auto-recovery. |
| Short Circuit protection | Type; hiccup mode, auto-recovery. |
| Over voltage protection | 18 ÷ 25VDC; Type: shut down output voltage. Re-power on to recovery. |
| EAN | 5901885200484 |
