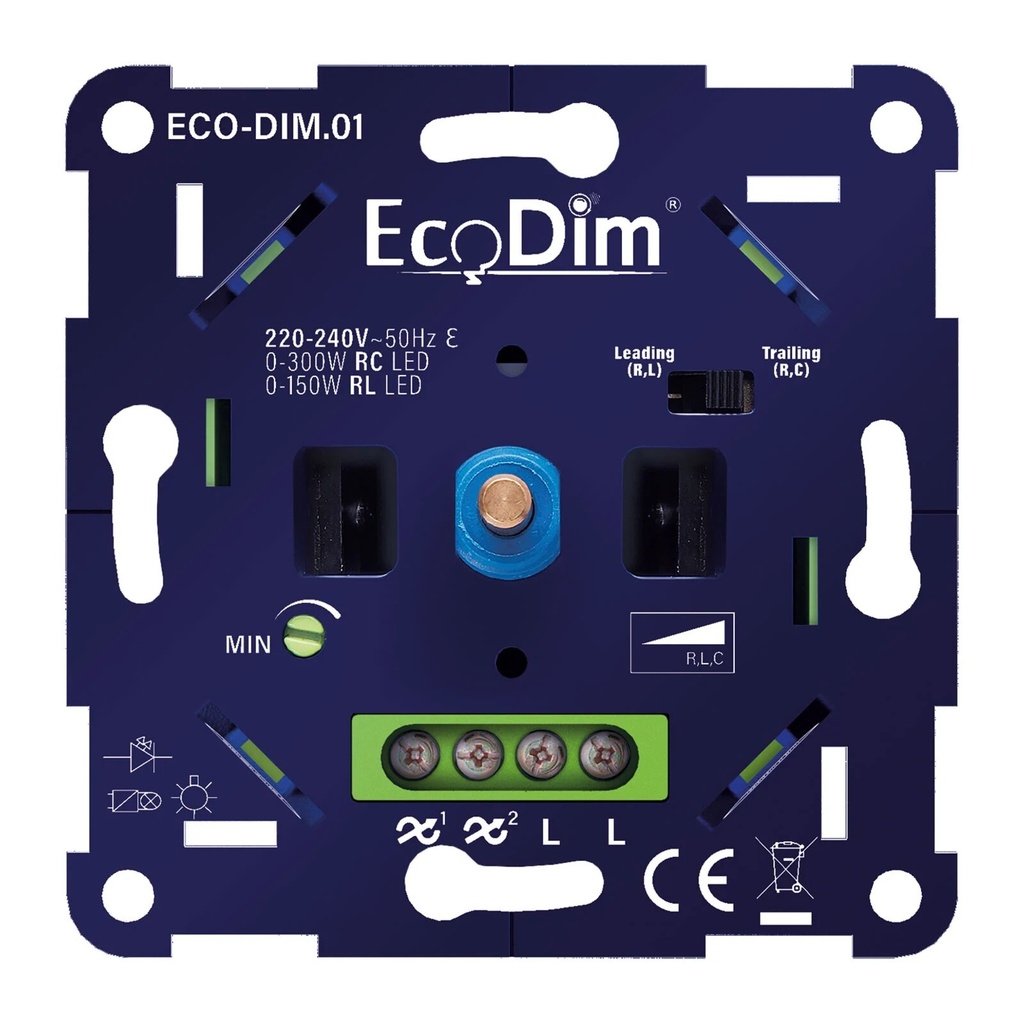

LED dimmer ECO-DIM ECO-DIM.01 0-150W (300W)

Create atmospheric lighting, save energy and enjoy a smooth user experience with this compact and innovative LED dimmer. ECO-DIM is specially designed to work perfectly with Efapel Logus cover plates and frames. The dimmer gives you complete control over your lighting.

• 0-300W (RC) / 0-150W (RL) LED
• 0-300W (RC) / 0-150W (RL) LED
• Universal: Phase on/off cut-off (RLC)
• Suitable for all A brands of cover material
• Small installation depth
• Optimal dimmability and light stability
• MIN adjustment & automatic MAX detection
• Protection against overload, overheating and interference signals
• Quiet dimming
• Suitable for two-way switching and cross switching
• Chain connection possible (double L-gate)
• Suitable for all dimmable LED lamps
• Soft start system
• Supplied with fittings

Suitable brands of cover material

• Efapel
• Berker by Hager
• Busch-Jaeger (except 6540-7X)
• Gira
• JUNG
• Kopp
• Merten by Schneider 51XX and System M
• Niko XXX-31003 (provided you use Niko adapter) and XXX-31000
• PEHA

Not suitable:

• Busch-Jaeger 6540-7
• Merten D-Life
• Niko PR20
• Dimmer knob with D-shaped hole, such as Wintop, Plieger, GAMMA Everest

Suitable lamps

• Led lamps 230V (max. 300W)
• Incandescent lamps (max. 300W)
• Halogen lamps 230V (max. 300W)
• Low-voltage lamps with electronic transformer, such as LED lamps with transformer (max. 300W)
