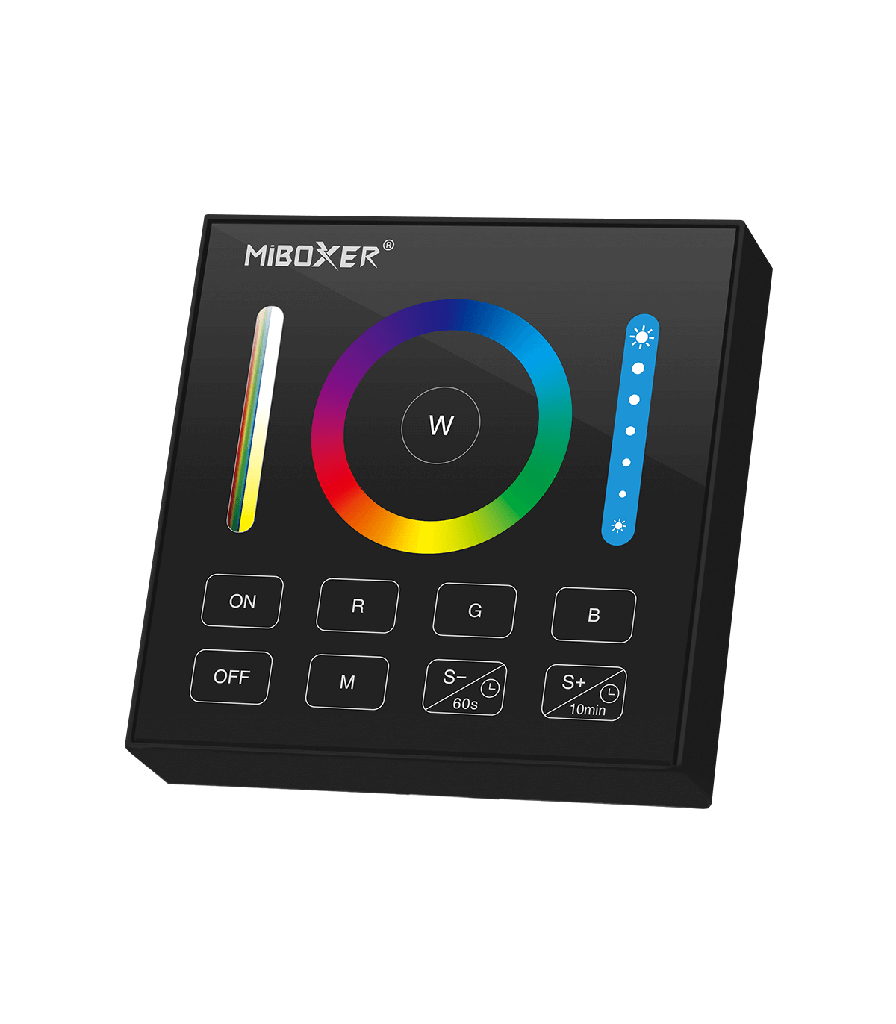

Mi-Light B0-B smart panel remote controller RGB+CCT (2.4G)
Article No. |
183002 |
EAN |
6970602183002 |
Terms and Conditions
14-day money-back guarantee
Delivery: Pick up at our warehouse in Helsingborg or tracked shipping 1-3 business days.
Description
Miboxer B0-B
LED wall-mounted radio controller - 1 ZONE - RGB+CCT - Mi-Light is a wireless wall panel that allows brightness management with the possibility of controlling a given RGB colour and CCT colour temperature for devices adapted for multicolour installations with variable colour temperature. The controller allows an individual access to one zone, which can be controlled by a glass wall panel. The device is intended for surface mounting. The wall panel is powered by two batteries 1.5V AAA
Application for installation:
RGB - multi-coloured
RGB+W - multi-coloured with additional white colour
RGB+CCT - multi-coloured with variable colour temperature
Documents
Specification
| Product Name | B0 Smart Panel Remote Controller |
| Model No. | B0-B |
| Working Temperature | -20 -60°C |
| Voltage | 3V (2*AAA Battery) |
| Transmission Frequency | 2400-2483.5MHz |
| Modulation Method | GFSK |
| Transmitting Power | 6dBm |
| Standby Power | 20uA |
| Control Distance | 30m |
| Size | 86*20*86mm |
| EAN | 6970602183002 |
