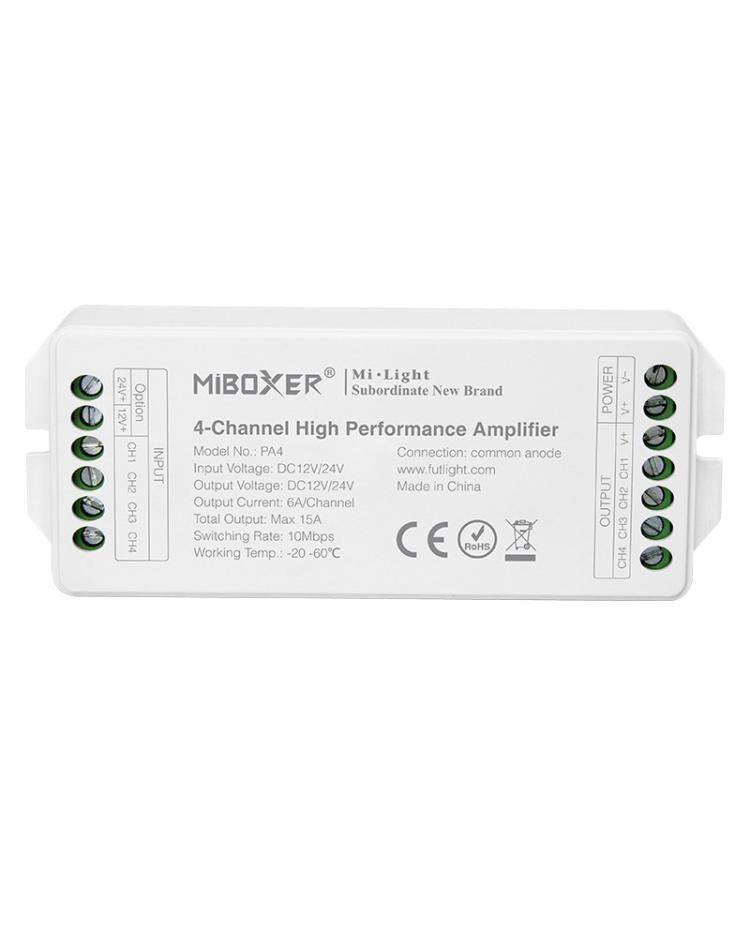

Mi-Light PA4 4-channel high-performance amplifier
Avoid voltage drops with an amplifier
Article No. |
180322 |
EAN |
6970602180322 |
Terms and Conditions
14-day money-back guarantee
Delivery: Pick up at our warehouse in Helsingborg or tracked shipping 1-3 business days.
Description
MiBoxer PA4
The 4-channel high-performance amplifier is a powerful and versatile device that can be used to control LED lighting. It has four channels that can control up to four LED strips or lights. The amplifier can deliver up to 15A of current, making it suitable for use with high-efficiency LED strips and lights. It works with both RGB and RGBW LED strips and lights, and can be dimmed to set the brightness. Can be connected to all standard LED controllers.
Features:
- 4 channels to control up to 4 colors, LED strips or lights
- Can deliver up to 15A current
- Works with RGB and RGBW LED strips and lights
- Can be fogged
- Can be connected to all standard LED controllers
Advantages:
- Powerful and efficient for controlling LED strips and lights
- Provides a variety of functions to customize the light output
- Easy to install and use
Areas of use:
- Can be used to control LED lighting in homes, offices, shops and other premises
- Suitable for all types of LED strips and lamps
Documents
Specification
| Terminals | Screw terminals |
| Input/output voltage of the receiver | 12V DC or 24V DC |
| Maximum output current | 15A (6A/channel) |
| Common anode | Yes |
| Method of control | PWM |
| Model number | PA4 |
| Signal correction system | Yes |
| Working temperature | -20 – 60°C |
| Input connector (power supply) | Screw terminals for bare wires |
| Output connector (terminal) | Screw terminals for bare wires |
| Color | White |
| Housing material | ABS |
| IP class | IP20 |
| Dimensions[mm] | L119 x W47 x H23 |
| Certification | RoHS, CE, UKCA |
| Warranty | 2 years |
| EAN | 6970602180322 |
