Mi-Light SR5-P Waterproof 5 in 1 LED Controller (2.4GHz DMX512)
Article No. |
186010 |
EAN |
6970602186010 |
Terms and Conditions
14-day money-back guarantee
Delivery: Pick up at our warehouse in Helsingborg or tracked shipping 1-3 business days.
Description

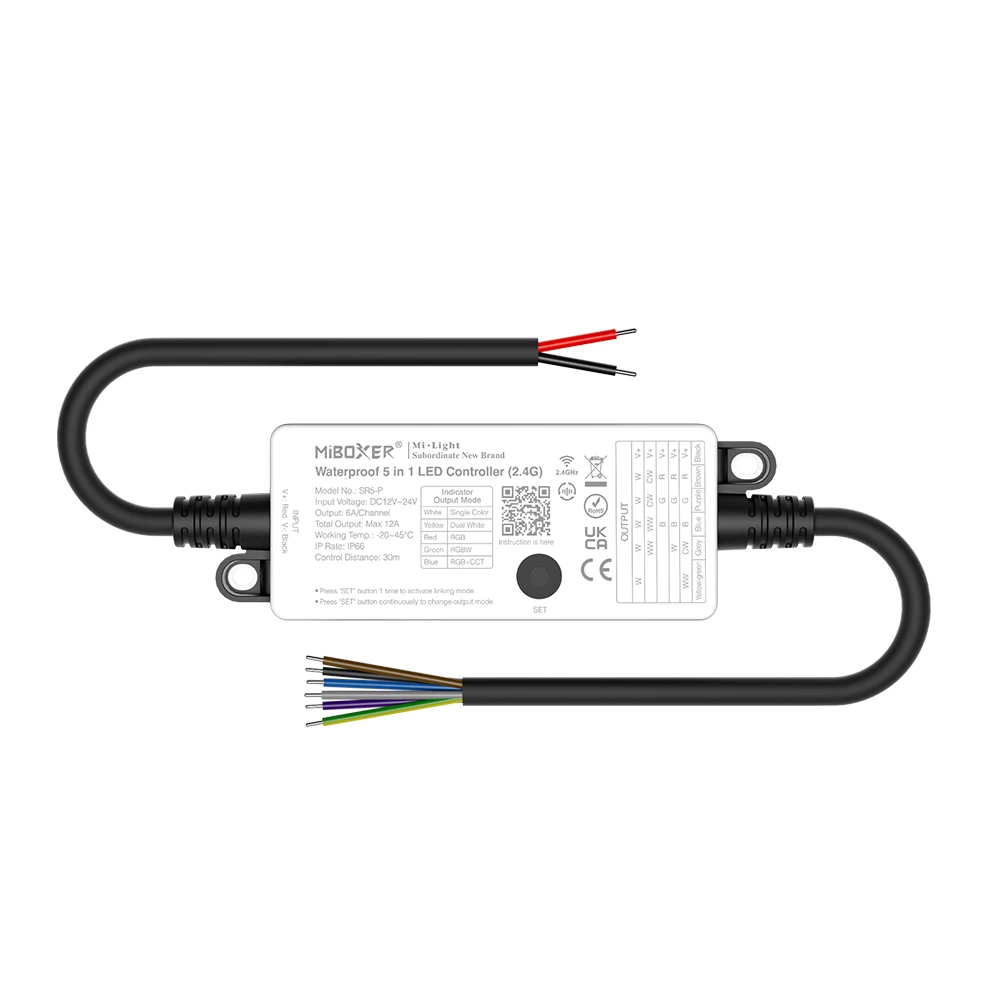

SR5-P Waterproof 5 in 1 LED Controller (2.4GHz)
The SR5-P is a robust and versatile waterproof 5-in-1 LED Controller, designed to handle a wide variety of LED strips in outdoor or humid environments. With its IP66 rating and reliable 2.4GHz RF control, this controller is perfect for creating customizable lighting solutions for pool areas, gardens, facades, and other demanding applications. It supports single color, CCT (color temperature), RGB, RGBW, and RGB+CCT LED strips.
Key Features:
- 5-in-1 Versatility: Compatible with five different types of LED strips:
- Single Color: Controls the brightness of single-color LED strips.
- CCT (Dual White): Adjusts color temperature from warm white to cool white.
- RGB: Provides full-color control (Red, Green, Blue).
- RGBW: Combines RGB with a dedicated White channel for richer colors and pure white light.
- RGB+CCT: Offers full-color and color temperature control for maximum flexibility.
- Waterproof Design (IP66): Encapsulated to be fully protected against dust and powerful water jets, making it ideal for outdoor use and exposed environments.
- 2.4GHz RF Wireless Control: Uses Mi-Light/MiBoxer's robust 2.4GHz RF protocol for stable and responsive control. Compatible with a range of remote controls, panels, and WiFi gateways (e.g., WL-Box1) for smartphone app control.
- Automatic Signal Transmitting: Devices within 30 meters range can forward the control signal, effectively extending the control distance and creating a larger wireless network.
- Automatic Mode Synchronization: Multiple SR5-P controllers can synchronize their dynamic modes when controlled by the same remote and within range of each other.
- Memory Function: The controller retains the last set brightness, color, or color temperature even after power interruption.
- High Current Capacity: With a maximum output of 6A per channel and a total of 15A, it can drive longer lengths of LED strips.
- Logarithmic Dimming Curve: Provides smooth and even dimming from 0.1% to 100% with 4096 grayscale levels.
Applications:
The SR5-P is ideal for outdoor lighting, marine lighting, bathroom lighting, sauna installations, and other environments where water resistance is crucial. It provides full flexibility to create the perfect illumination regardless of weather conditions.
Documents
Specification
| Product Name | 5 in 1 Controller |
| Model No. | SR5-P |
| Input Voltage | DC12-24V |
| Output Current | 6A/Single channel |
| Total Output | Max 12A |
| Control Signal | 2.4GHz RF |
| Control Distance | 30M |
| IP Rate | IP66 |
| Dimming Curve | Logarithmic |
| Certification | CE, EMC, RED |
| EAN | 6970602186010 |
