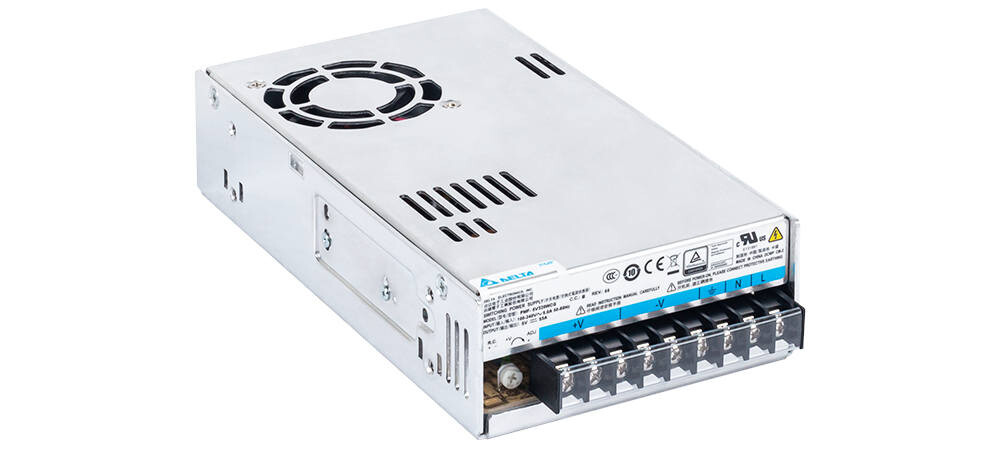

PMF Panel Mount Power Supply 5 V 275 W 1 Phase
Article No. |
138168 |
EAN |
5902135138168 |
Terms and Conditions
14-day money-back guarantee
Delivery: Pick up at our warehouse in Helsingborg or tracked shipping 1-3 business days.
Description
Transformer that converts 230V AC voltage to 5V DC voltage. This type of transformer is often used to power LED lights and other electronic equipment that requires a low voltage.
Features:
- Converts 230V AC voltage to 5V DC voltage
- Can be used to power LED lights and other electronic equipment that requires a low voltage
Areas of use:
- Led lamps
- Electronics
- Tool
- Game consoles
- Machines
PMF panel mount power supplies offer nominal output voltage of 5 V. These power supplies come with universal AC input from 85 Vac to 264 Vac and wide operating temperature of -10°C to +70°C. The built-in active PFC provides high power factor and complies with harmonic current IEC/EN/BS EN 61000-3-2, Class A and Class D. Remote ON/OFF function is also available for the PMF series. All PMF power supplies comply with important international safety standards including IEC/EN/UL 62368-1 standards and are fully compliant with the RoHS directive for environmental protection.
Documents
Specification
| Nominal Input Voltage | 100-240 Vac |
| Input Voltage Range | 85-264 Vac |
| Nominal Input Frequency | 50-60 Hz |
| Input Frequency Range | 47-63 Hz |
| Input Current | < 5.00 A @ 115 Vac, < 2.50 A @ 230 Vac |
| Efficiency at 100% Load | 78.5% typ. @ 230 Vac |
| Max Power Dissipation 0% load | 2.6 W typ. @ 115 Vac & 2.52 W typ. @ 230 Vac 100% load 83.24 W typ. @ 115 Vac & 72.66 W typ. @ 230 Vac |
| Max Inrush Current (Cold Start) | < 30 A @ 115 Vac, < 50 A @ 230 Vac |
| Power Factor at 100% load | 0.98 typ. @ 115 Vac, 0.95 typ. @ 230 Vac |
| Leakage Current | < 1 mA @ 240 Vac |
| Nominal Output Voltage | 5 Vdc |
| Factory Set Point Tolerance | 5 Vdc ± 1% |
| Output Voltage Adjustment Range | 4.50-5.50 Vdc |
| Output Current | 0-55.0 A (275 W max.) |
| Output Power | 275 W |
| Line Regulation | ± 0.5% typ. (@ 115 Vac & 230 Vac) |
| Load Regulation | ± 2.0% typ. (@ 115 Vac & 230 Vac) |
| PARD** (20 MHz) | < 150 mVpp @ 25°C < 300 mVpp @ -10°C |
| Rise Time | 50 ms typ. @ 115 Vac & 230 Vac (100% load) |
| Start-up Time | 2500 ms typ. @ 115 Vac, 1000 ms typ. @ 230 Vac (100% load) |
| Hold-up Time | 16 ms typ. @ 115 Vac & 230 Vac (100% load) |
| Dynamic Response (Overshoot & Undershoot O/P Voltage) | ± 5% (0.5 V pk-pk) @ 115 Vac & 230 Vac, 0-50% load and 50- |
| 100% load) (Slew Rate | 0.1 A/uS, 50% duty cycle @ 5 Hz) |
| Start-up with Capacitive Loads | 8,000 uF Max |
| Remote ON/OFF Function (Option) CN102 Output ON | 5-12.5 V |
| Output OFF | 0-0.5 V |
| EAN | 5902135138168 |
