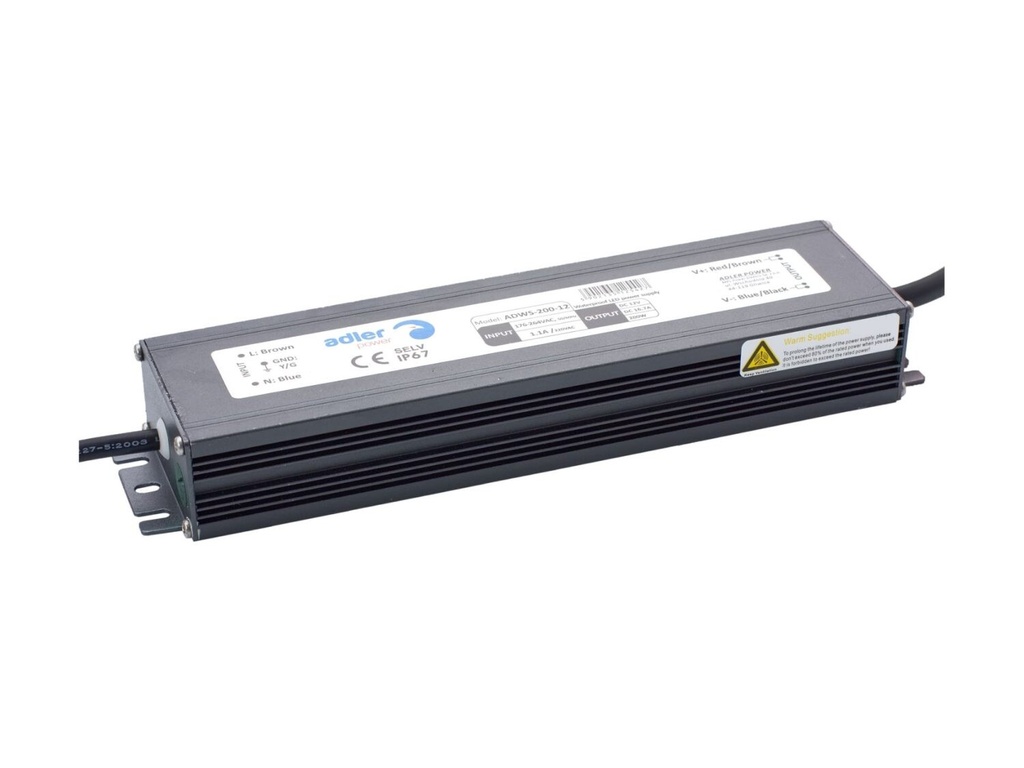

Power supply 12V 200W IP67
Article No. |
125427 |
EAN |
5902135125427 |
Terms and Conditions
14-day money-back guarantee
Delivery: Pick up at our warehouse in Helsingborg or tracked shipping 1-3 business days.
Description
Constant voltage hermetic power supplies of the ADWS series by Adler are devices in a metal housing with IP67 protection degree. The power supply meets a number of safety standards and has numerous certificates, thanks to which it can be safely used both in home and commercial use. The power supplies in this series are characterized by small dimensions and low weight, which allows them to be installed in hard-to-reach places.
The construction of the power supply means that its main purpose is LED applications such as tapes, banners, advertising, light bulbs, fixtures and lamps. The device is also characterized by small dimensions and, as in similar constructions of this type, has built-in power cables.
The most important features of the power supply:
IP67 tightness class
Constant output voltage regardless of load
Insulated metal housing
Efficiency> 88%
Cooling with free air circulation
Protection: short circuit, overload, overvoltage
Documents
Specification
| DC output voltage | 12V |
| Rated current [A] | 16.7 |
| Voltage adjustment range | Not possible |
| Rated power [W] | 200 |
| DC input voltage | 170 ~ 264 VAC |
| Frequency | 47 ~ 63Hz |
| Efficiency | 88% |
| Acceptable temperature range | -30 ~ + 50 ° °C |
| Overload protection | 110 ~ 180% |
| Protection degree | IP67 |
| MTBF | no data available |
| Safety standards | EN55015, EN61547, EN 61347-1, EN 61347-2-13, EN61000-3-3, EN61000-3-2 |
| Housing | Metal |
| Cooling | Passive |
| Width [mm] | 58 |
| Height [mm] | 32 |
| Length [mm] | 238 |
| Weight [kg] | 0.88 |
| Details | Metal low profile housing, Efficiency up to 88%, Working temperature up to 50 °C, |
