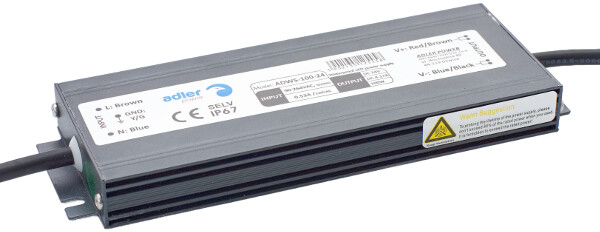

Power supply 24V 100W, IP67
Power supply 24V 150W IP67
Article No. |
125458 |
EAN |
5902135125458 |
Terms and Conditions
14-day money-back guarantee
Delivery: Pick up at our warehouse in Helsingborg or tracked shipping 1-3 business days.
Description
Transformer 24V 100W IP67 – kvalitetsbelysning med lang levetid og lavt energiforbrug.
Specification
| DC output voltage | 24V |
| Rated current [A] | 6,25 |
| Voltage adjustment range | Not possible |
| Rated power [W] | 150 |
| DC input voltage | 170 ~ 264 VAC |
| Frequency | 47 ~ 63Hz |
| Efficiency | 88% |
| Acceptable temperature range | -30 ~ + 50 ° °C |
| Overload protection | 110 ~ 180% |
| Protection degree | IP67 |
| MTBF | no data available |
| Safety standards | EN55015, EN61547, EN 61347-1, EN 61347-2-13, EN61000-3-3, EN61000-3-2 |
| Housing | Metal |
| Cooling | Passive |
| Width [mm] | 58 |
| Height [mm] | 32 |
| Length [mm] | 208 |
| Weight [kg] | 0.77 |
| Details | Metal low profile housing, Efficiency up to 88%, Working temperature up to 50 °C |
