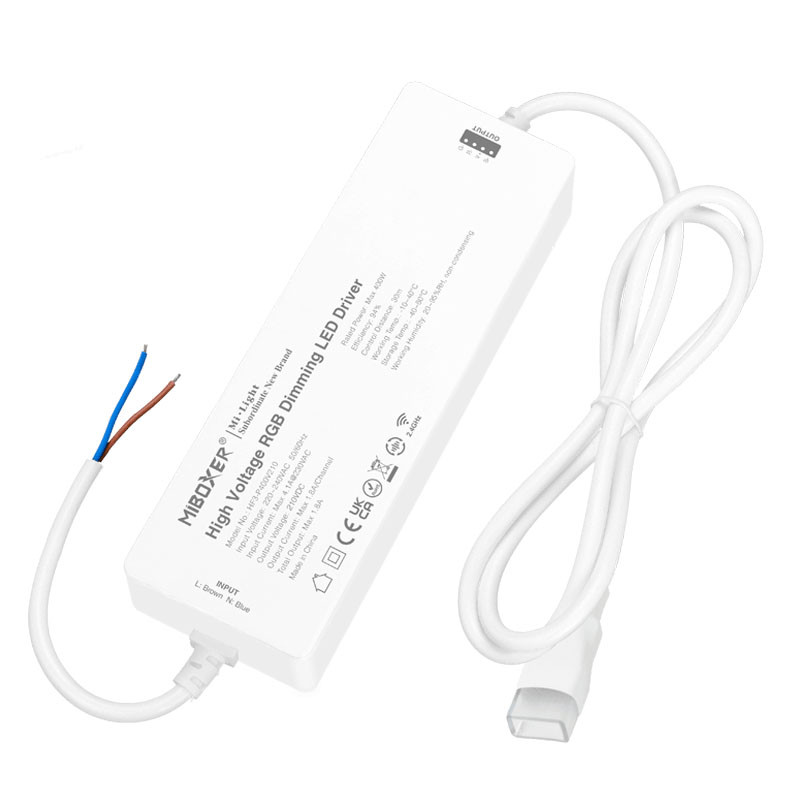

Mi-Light RGB Driver HF3-P400V210
Article No. |
182050 |
EAN |
6970602182050 |
Terms and Conditions
14-day money-back guarantee
Delivery: Pick up at our warehouse in Helsingborg or tracked shipping 1-3 business days.
Description
Mi-light MiBoxer HF3-P400V210
This high-quality RF 2.4GHz 24V 3 Channel LED Driver from Mi-Light can be paired to a 2.4GHz RF Mi-Light / Mi-Boxer Handset or Wall Panel. Control high voltage remote-controlled RGB LED lighting products effortlessly.
The maximum load on this LED RGB driver is 1.9A (400W) or 12A (12A / Channel). The RGB driver is powered by a 100-240v AC 50/60Hz mains supply providing an output voltage of 230V DC
This RGB LED driver features an auto transmitting & synchronizing function when controlled from a 2.4GHz RF (Radio Frequency) handset or wall panel. Multiple LED RGB drivers can be paired to the same single zone on the controller. Make sure they are all within 30m of each other
Note! Buy for hand control, gateway or wall panel.
Documents
Specification
| Product Code | HF3P400V210 |
| Manufacturer | Mi-Light / MiBoxer |
| Product Type | Controller / Receiver |
| IP Rating | IP20 Non-Waterproof |
| Input Voltage | 100v - 240v AC |
| Output Voltage | 230V DC |
| Connectivity | RF |
| Size | L119x W37.5 x H22mm |
| Wireless Range | Up to 30 metres |
| Transmitting Power | 6dBm |
| Operation Frequency | 2.4GHz |
| Operating Temp | -20~60°C |
| Total Output | Max12A |
| Output Max | 12A/Channel |
| Smart Synchronisation | Version 2.0 |
| EAN | 6970602182050 |
