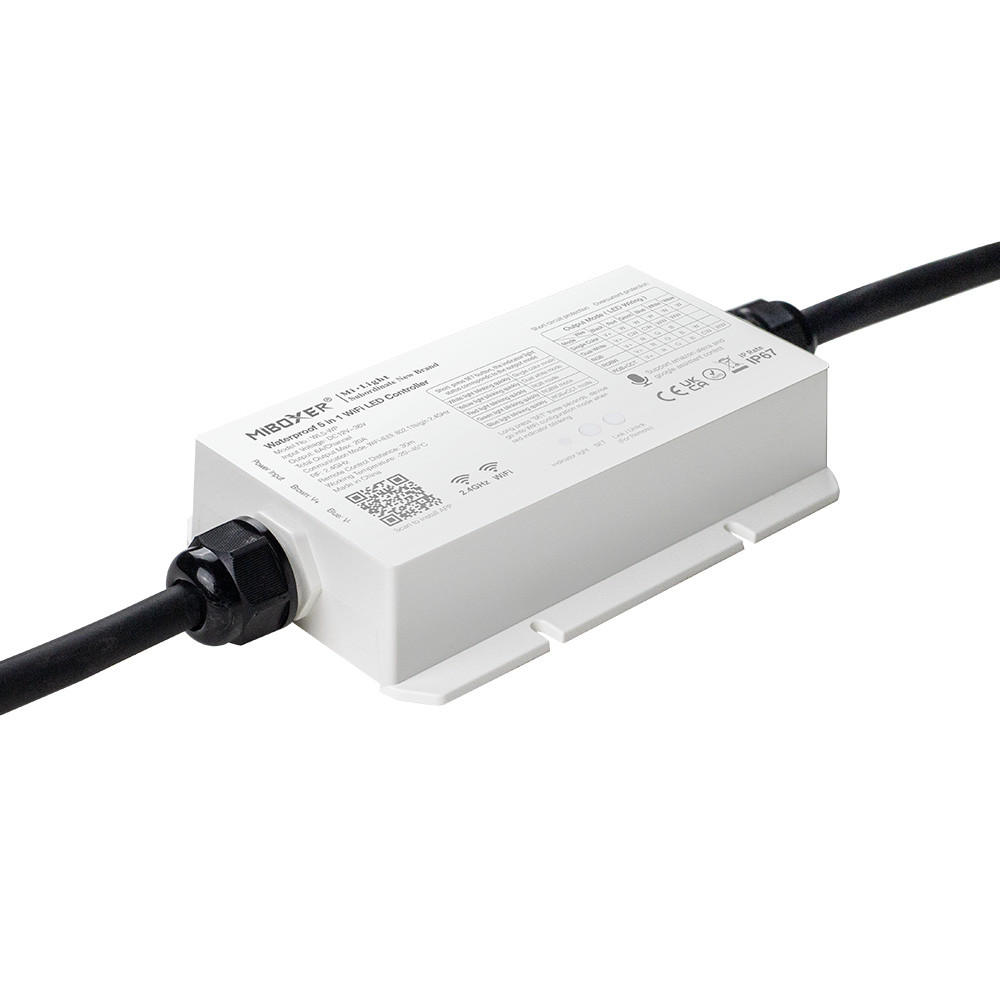

Mi-Light WL5-WP Waterproof 5 in 1 LED Strip Controller (WiFi+2.4GHz)

Mi-Light MiBoxer WL5-WP

This high quality LED strip controller is a fantastic modern product from our Mi-Light range of LED controllers.

Using the "Set" button, the LED multi-channel receiver can be adjusted to control single-color LEDs, dual-white (CCT), three-color (RGB-LEDs), four-color (RGBW-LEDs) and RGBW+CCT 12V or 36V LED products.

It can be connected to a smartphone by downloading the free MiLight app or smart speaker via Wi-Fi. In addition, this multi-channel receiver can be paired with a compatible Mi-Light RF remote control or wall panel on the 2.4 GHz frequency. It is ideal for outdoor mounting to control your IP67 2.4GHz lighting products.

This multi-channel receiver is waterproof and is therefore an ideal solution to enable control of lighting in wet and humid environments such as swimming pools, bathrooms, kitchens or outdoor areas.

To set the control mode, simply toggle the setting button on your lighting control. This will change the color of the adjacent indicator light to show:

• White for monochrome mode
• Yellow for double white mode
• Red for tri-color (RGB) mode.
• Green for four color mode (RGBW).
• Blue for five-channel mode (RGB+CCT).

Note: Each channel is rated at 6A, however the total combined load across all five channels should not exceed 20A maximum load. A 12v - 36v DC (direct current) constant voltage input is required.

All of our 2.4 GHz radio frequency receivers have an automatic transmission and synchronization function. As long as the controllers are all within 30m of each other, the multiple receivers in the group will be synchronized. No interconnecting control cables are needed.

This 5-channel receiver requires a 12v or 24v or 36v DC power supply to operate.
