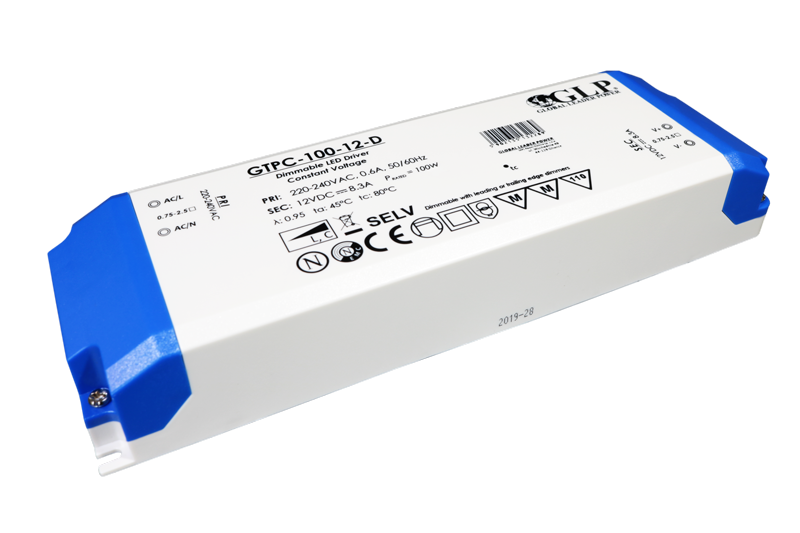

Transformer 12V, 100W, 8,3A, dæmpbar
12V LED-strømforsyning, dæmpbar på primærsiden
Artikel nr. |
132289 |
EAN |
5902135132289 |
Salgs- og leveringsbetingelser
14 dages pengene-tilbage-garanti
Levering:sporbar fragt 1-3 arbejdsdage.
Description
Dæmpbar strømforsyning (TRIAC DIMM)
Velegnet til dæmpning af LED-strimler
- Konstant spænding
- Det europæiske AC-indgangsområde
- Beskyttelse: Overbelastning / Overspænding / Kortslutning
- Køling med fri luftkonvektion
- Isolering klasse II
- Velegnet til arbejde med AC triac lysdæmpere
- CB-certifikat
Documents
Specification
| Rated Voltage | 12V |
| Rated Current | 8.3A |
| Current Range | 0 ÷ 8.3A |
| Rated Power | 100W |
| Dimming range | 1 – 100% |
| Line Regulation | ± 2% |
| Load Regulation | ± 2% |
| Tolerance | ± 2% |
| Ripple & Noise (max.) | 300mVP-P |
| Setup | 500ms / 230VAC at full load |
| Voltage Range | 220 ÷ 240VAC |
| Frequency Range | 47 ÷ 63Hz |
| Efiiciency | (typ.):89% |
| AC Current (typ.) | 0.60A / 230VAC |
| Inrush Current (typ.) | 65A / 230VAC; 500us |
| Overload Range | > 150% type, hiccup, auto-recovery |
| Short CircuitType | hiccup, auto-recovery |
| Over VoltageType | hiccup, auto-recovery |
| Working Temperature | -20°C ÷ 50°C, ta: 40°C; tc: 80°C |
| Working Humidity | 20 ÷ 90% RH non-condensing |
| Safety Standards Compliance to | EN 61347-1, EN 61347-2-13, EN 60598-1 |
| Withstand Voltage IN/OUT | 3.75kVAC |
| Isolation Resistance IN/OUT | 100M?/500VDC/25°C/70% |
| EMC Emission Compliance to | EN 55015, EN 62493 |
| EMC Immunity Compliance to | EN 61547 |
| Harmonic Current Compliance to | EN 61000-3-3, EN 61000-3-2 |
| Lifetime (typ.) | 30 000 hours |
| Dimensions | 210 x 67 x 34mm (L x W x H) |
| Weight and Packing | 360g, 50pcs./ctn, |
| Ctn weight and dimensions | 18kg; 38.5 x 36.5 x 23.5cm |
