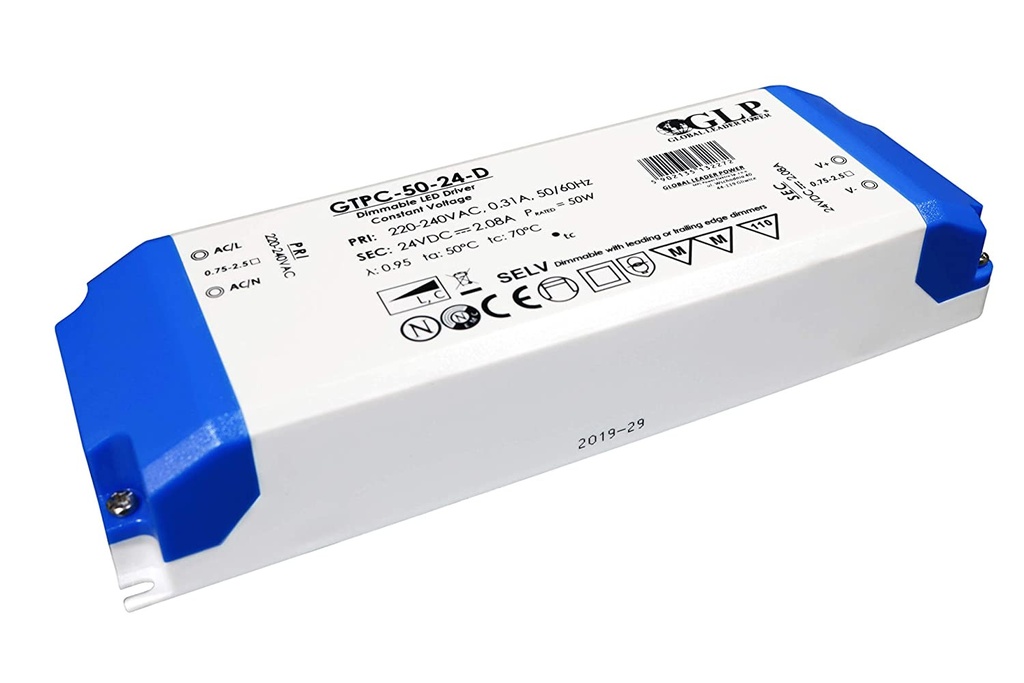

Transformer 24V, 50W, 2,08A, dæmpbar
24V LED-strømforsyning, dæmpbar på primærsiden
Artikel nr. |
132272 |
EAN |
5902135132272 |
Salgs- og leveringsbetingelser
14 dages pengene-tilbage-garanti
Levering:sporbar fragt 1-3 arbejdsdage.
Description
Dæmpbar strømforsyning (TRIAC DIMM)
24V LED-strømforsyning, dæmpbar på primærsiden
- Velegnet til dæmpning af LED-strimler
- Konstant spænding
- Det europæiske AC-indgangsområde
- Beskyttelse: Overbelastning / Overspænding / Kortslutning
- Køling med fri luftkonvektion
- Isolering klasse II
- Velegnet til arbejde med AC triac lysdæmpere
- CB-certifikat
Documents
Specification
| Rated Voltage | 24V |
| Rated Current | 2.08A |
| Current Range | 0 ÷ 2.08A |
| Rated Power | 50W |
| Dimming range | 1 – 100% |
| Line Regulation | ± 3% |
| Load Regulation | ± 3% |
| Tolerance | ± 3% |
| Ripple & Noise (max.) | 2000mVP-P |
| Setup | 500ms / 230VAC at full load |
| Voltage Range | 220 ÷ 240VAC |
| Frequency Range | 47 ÷ 63Hz |
| Efiiciency (typ.) | 86% |
| AC Current (typ.) | 0.31A / 230VAC |
| Inrush Current (typ.) | 5A / 230VAC; 500us |
| Overload Range | Constant power, Type auto-recovery. |
| Short Circuit Type | auto-recovery. |
| Over Voltage Type | shut off, auto-recovery. |
| Over Temperature | Type: shut off, auto-recovery. |
| Working Temperature | -20°C ÷ 50°C, ta: 40°C; tc: 70°C |
| Working Humidity | 20 ÷ 90% RH non-condensing |
| Safety Standards Compliance to | EN 61347-1, EN 61347-2-13, EN 60598-1 |
| Withstand Voltage IN/OUT | 3.75kVAC |
| Isolation Resistance IN/OUT | 100M?/500VDC/25°C/70% |
| EMC Emission | Compliance to EN 55015, EN 62493 |
| EMC Immunity | Compliance to EN 61547 |
| Harmonic Current Compliance to | EN 61000-3-3; EN 61000-3-2 |
| Lifetime (typ.) | 30 000 hours |
| Dimensions | 182 x 60 x 32mm (L x W x H) |
| Ctn weight and dimensions | 12kg, 39.5 x 33.5 x 20cm |
