Mi-Light X2 DMX512 Master Color Temperature (DMX512)
Article No. |
181206 |
EAN |
6970602181206 |
Terms and Conditions
14-day money-back guarantee
Delivery: Pick up at our warehouse in Helsingborg or tracked shipping 1-3 business days.
Description

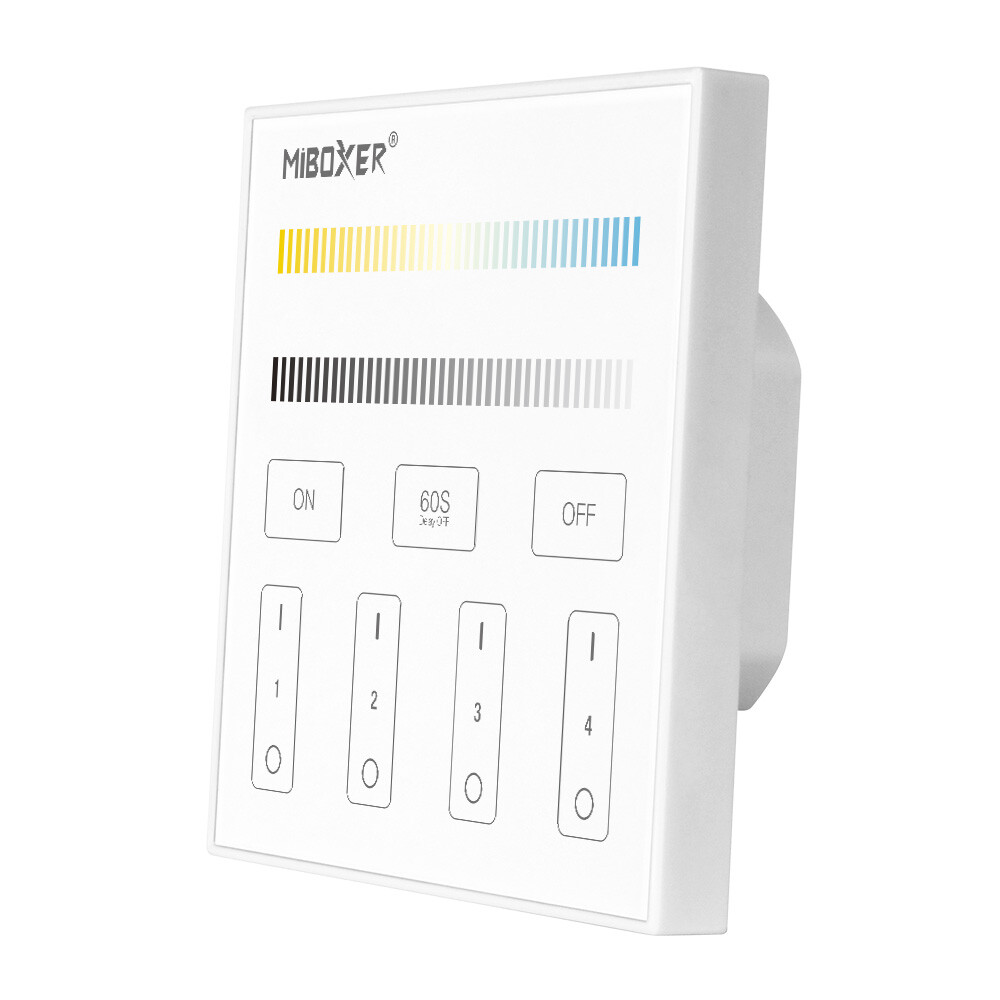

Mi-Light / MiBoxer X2 DMX512 Master (Color Temperature)
The Mi-Light / MiBoxer X2 DMX512 Master is a sophisticated wall-mounted touch panel designed to intuitively control DMX512-compatible lighting systems with adjustable color temperature (CCT). This control panel is perfect for creating various ambiances by adjusting the white shade of light, from warm white to cool white. It is ideal for professional lighting installations in environments requiring dynamic and precise control over color temperature, such as offices, retail stores, galleries, hotels, and homes.
Key Features:
- DMX512 Output: Directly controls DMX512-compatible fixtures and drivers for color temperature.
- Color Temperature Control (CCT): Dedicated for adjusting the white balance from warm white (e.g., 2700K) to cool white (e.g., 6500K) to match different needs and moods.
- High-Precision Touch Panel: Provides smooth and responsive control over both brightness and color temperature via a sensitive touch surface.
- 2.4GHz RF Transmitting Function: Capable of wirelessly transmitting DMX512 signals via 2.4GHz RF, reducing the need for extensive DMX cabling and offering flexibility in installation.
- Standard 86-type Wall Box Installation: Easy to mount into a standard wall box, providing a clean and aesthetically integrated appearance into the interior.
- Auto-transmitting & Auto-synchronizing:
- Auto-transmitting: Control signals can be forwarded to other 2.4GHz RF receivers within 30 meters, effectively extending the range.
- Auto-synchronizing: Multiple X2 panels can synchronize their settings when within range of each other and controlled in the same manner, perfect for larger spaces.
- Memory Function: The panel's settings (last selected color temperature and brightness) are automatically saved, even after power interruption, for a hassle-free user experience.
Applications:
The X2 is ideal for controlling lighting where color temperature is a crucial factor in creating the right atmosphere and functionality. It's perfect for locations like offices where the light can be adjusted for better concentration, in retail for highlighting products, or in restaurants and hotels to create varying ambiances throughout the day and evening.
Documents
Specification
| Product Name | DMX512 Master (Color Temperature) |
| Model No. | X2 |
| Input Voltage | 100-240V~ 50/60Hz |
| RF | 2.4GHz |
| RF Transmitting Power | 6dBm |
| RF Control Distance | 30m |
| IP Rate | – (No specified IP rating, likely for indoor use) |
| Working Temperature | -20~60°C |
