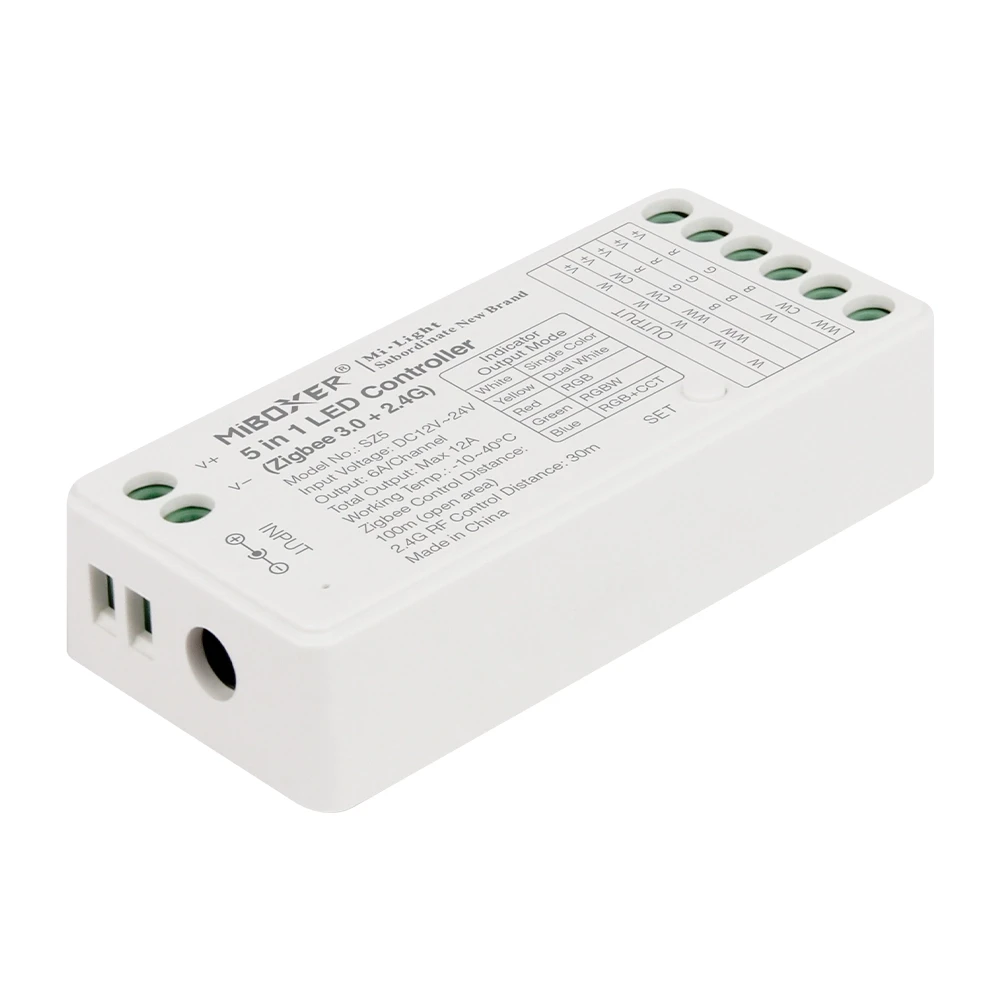

Mi-Light SZ5 5 in 1 LED Controller (Zigbee 3.0+ 2.4G)
Article No. |
185488 |
EAN |
6970602185488 |
Terms and Conditions
14-day money-back guarantee
Delivery: Pick up at our warehouse in Helsingborg or tracked shipping 1-3 business days.
Description
Mi-Light SZ5 5 in 1 LED Controller (Zigbee 3.0 + 2.4G)
Mi-Light SZ5 5 in 1 LED Controller (Zigbee 3.0 + 2.4G) is a powerful and flexible control unit that combines the best of both worlds – Zigbee 3.0 and 2.4GHz RF technology – in one single device. With support for five different LED configurations (RGB, RGBW, RGB+CCT, CW/WW, single color), it is ideal for both new and existing smart lighting systems.
Control your lighting wirelessly via Zigbee gateways such as Tuya, Amazon Echo, Philips Hue Bridge (Zigbee 3.0), or with compatible Mi-Light 2.4GHz remote controls and wall panels. Support for synchronization, group control, and scene selection allows you to easily create atmospheric and energy-efficient lighting – both at home and in commercial environments.
Mi-Light SZ5 is also compact, reliable, and easy to install – perfect for anyone looking for a versatile LED controller for smart lighting control.
Features & Benefits:
- 5-in-1 LED support: RGB, RGBW, RGB+CCT, CW/WW, Single Color
- Compatible with Zigbee 3.0 and 2.4GHz Mi-Light
- Control via app (Tuya/Smart Life) or remote control
- Group control, scene selection, and dimming for flexible lighting
- Easy integration with smart home systems
- Perfect for both indoor and commercial installations
Documents
Specification
| Model | Mi-Light SZ5 |
| Control Protocol | Zigbee 3.0 + 2.4GHz RF |
| Compatible LED Types | RGB, RGBW, RGB+CCT, CW/WW, Single Color |
| Voltage | 12–24V DC |
| Output Current | 6A/ Single channel |
| Total Output | Max 12A |
| Control Signal | Zigbee 3.0 + 2.4GHz RF |
| Control Distance | Zigbee: 100M(Open area)/ 2.4G RF ; 30M |
| IP Class | IP20 |
| Dimming Curve | Logarithmic |
| Output Type | 5 channels, constant voltage |
| App Control | Yes (via Zigbee gateway, e.g., Tuya/Smart Life) |
| Remote Control | Yes (Mi-Light 2.4GHz compatible) |
| Synchronization Between Controllers | Yes (2.4GHz sync via RF network) |
| Support for Groups/Scenes | Yes |
| EMC Standard (EMC) | ETSI EN301 489-1 v 2.2.3 (2019-11) ; ETSI EN 301 489-3 v 2.3.2 (2023-01) |
| Safety Standard (LVD) | EN 61347-1 ; 2015+A1: 2021 |
| EN 61347-2-11 | 2001+A1:2019 |
| Radio Equipment (RED) | ETSI EN 300 440 V2.2.1 |
| Certification | CE, EMC, RED |
| Dimensions | 85 × 45 × 23 mm (L × W × H) |
| EAN | 6970602185488 |
