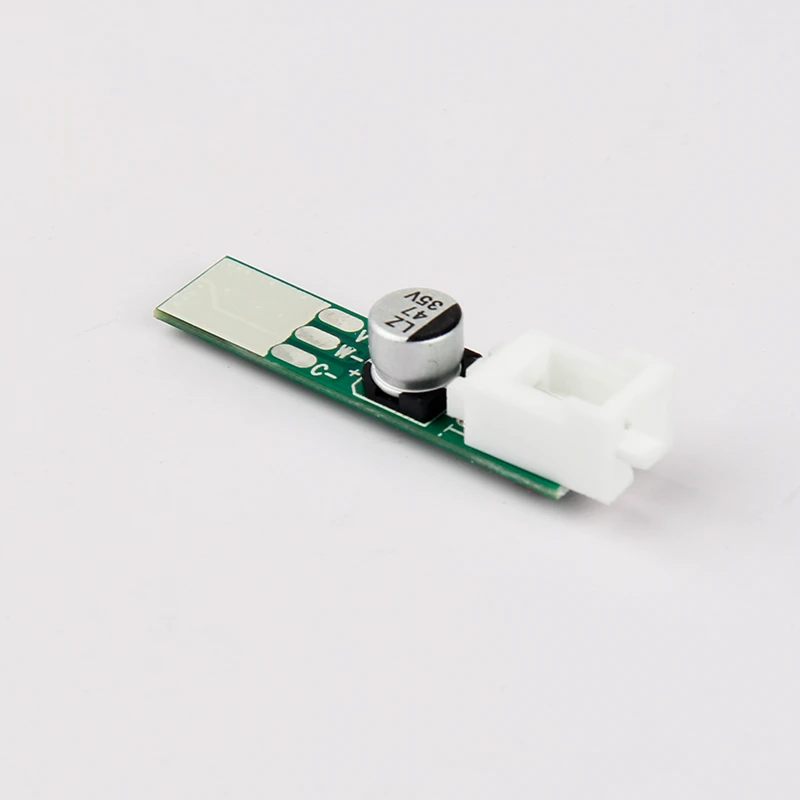

MiBoxer BS-L2C Stair Light Control Board

BS-L2C is a compact control module designed to integrate common CCT (Dual White/adjustable white) LED strips into MiBoxer's smart stair lighting system. It functions as a bridge between individual CCT LED strips (often one per step) and the main controller (such as BS64). Its purpose is to enable the advanced main controller to manage and dim each individual stair step, even if standard CCT strips are used instead of addressable (SPI) LED strips.

Key Features

• CCT LED Strip Extension: Allows for the connection and individual control of standard CCT LED strips (with adjustable color temperature between warm and cool white) for stair lighting.
• Communication with Main Controller: Must be used in conjunction with a compatible "master" stair lighting controller, such as MiBoxer BS64. Communication occurs via "2-wire PLC stair light master" (Power Line Communication) and T-splitter cables.
• Single Channel Output: Each BS-L2C module controls a single CCT LED strip/channel, meaning you will need one module per stair step if you wish to control each step individually with CCT LED.
• Dimmability and Color Temperature Control: Enables dimming and adjustment of the color temperature (from warm white to cool white) for the connected LED strip, controlled by the master controller.
• Compact Design: Small and easy to conceal during installation under the stair treads.

Areas of Application

The BS-L2C is specifically intended for smart stair lighting installations where cost-effective CCT LED strips are desired per stair step, while still benefiting from the advanced sequential and automatic control offered by MiBoxer's main controllers (like the BS64). It is ideal for building modular and customizable stair lighting systems.

Important Note

• Does Not Function Independently: The BS-L2C is an add-on module and cannot be used alone to control stair lighting. It requires a "master" stair lighting controller (e.g., MiBoxer BS64) to function.
• Wiring: Connects to the main control unit via a special T-splitter cable (MiBoxer BS-TS) and then directly to the CCT LED strip (V+, WW-, CW-).
• One Per Step: If you desire individual control over each stair step's CCT lighting, you will need one BS-L2C module per stair step.
